Product Details:
Payment & Shipping Terms:
|
| Connection: | Threaded | Connector Size: | 1/2'' |
|---|---|---|---|
| Connector Style: | Push-to-Connect | Connector Type: | Quick Connect |
| Flow: | High | Flow Rating: | 20 GPM |
| Material: | Steel | Name: | Hydraulic Quick Coupler |
| Pressure: | High | Pressure Rating: | 3000 Psi |
| Size: | Standard | Temperature: | High |
| Temperature Rating: | 200°F | Thread Size: | 1/2 In |
| Thread Type: | NPT | ||
| Highlight: | Hydraulic Machinery Quick Couplings,5000psi Quick Couplings,ISO7241B Hydraulic Quick Coupler |
||

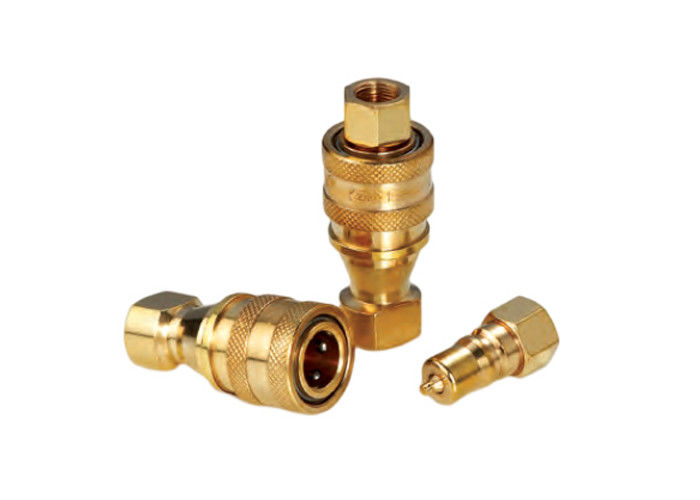

5000psi ISO7241B Quick Couplings for Hydraulic Machinery and Oil Equipment Open and Close Type Hydraulic Quick Couplings
where fluid coupling is used?
Fluid couplings, also known as hydraulic couplings, are used in many industries, including:
Automotive, Mining, Power generation, Material handling, Oil and gas, Marine, Textile, Industrial machines, Locomotives.
Fluid couplings are used in a variety of applications, including:
Belt conveyors, Bucket elevators, Ball mills, Crushers, Mixers, Slurry pumps, Compressors, Industrial fans, Diesel locomotives.
Fluid couplings are hydrodynamic mechanisms that use transmission fluid to transfer rotational force from one shaft to another. They can be used in extreme conditions, such as high engine vibration.
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 1/4" | 5000 | 3 | -20℃~+80℃ | NBR |
| 3/8" | 4000 | 6 | ||
| 1/2" | 4000 | 12 | ||
| 3/4" | 3000 | 28 | ||
| 1" | 3000 | 50 |
| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/4" | CB-S2B-1FG | 58 | 28.5 | 19 | 13 | G1/4 |
| 1/4" | CB-S2B-1FN | 58 | 28.5 | 19 | 13 | NPT1/4 |
| 3/8" | CB-S3B-1FG | 65 | 35 | 22 | 14 | G3/8 |
| 3/8" | CB-S3B-1FN | 65 | 35 | 22 | 14 | NPT3/8 |
| 1/2" | CB-S4B-1FG | 74 | 44.5 | 28.5 | 18 | G1/2 |
| 1/2" | CB-S4B-1FN | 74 | 44.5 | 28.5 | 18 | NPT1/2 |
| 3/4" | CB-S6B-1FG | 92 | 54 | 36 | 22 | G3/4 |
| 3/4" | CB-S6B-1FN | 92 | 54 | 36 | 22 | NPT3/4 |
| 1" | CB-S8B-1FG | 105 | 65 | 41 | 23 | G1 |
| 1" | CB-S8B-1FN | 105 | 65 | 41 | 23 | NPT1 |
| Body Size | PARTNO. | LP | C | HP | A | T |
| 1/4" | CB-P2B-1FG | 35.5 | 22.8 | 19*6角 | 13 | G1/4 |
| 1/4" | CB-P2B-1FN | 35.5 | 22.8 | 19*6角 | 13 | NPT1/4 |
| 3/8" | CB-P3B-1FG | 40 | 25 | 22*6角 | 14 | G3/8 |
| 3/8" | CB-P3B-1FN | 40 | 25 | 22*6角 | 14 | NPT3/8 |
| 1/2" | CB-P4B-1FG | 46.5 | 28 | 27*6角 | 18 | G1/2 |
| 1/2" | CB-P4B-1FN | 46.5 | 28 | 27*6角 | 18 | NPT1/2 |
| 3/4" | CB-P6B-1FG | 56 | 36 | 36*6角 | 22 | G3/4 |
| 3/4" | CB-P6B-1FN | 56 | 36 | 36*6角 | 22 | NPT3/4 |
| 1" | CB-P8B-1FG | 65 | 45 | 41*6角 | 23 | G1 |
| 1" | CB-P8B-1FN | 65 | 45 | 41*6角 | 23 | NPT1 |
