Product Details:
Payment & Shipping Terms:
|
| Type: | Coupling | Material: | Carbon Steel |
|---|---|---|---|
| Connection: | Female,Male | Technics: | Machining |
| Size: | 3/8, 1/2 | Thread: | BSP |
| Product Name: | Quick Coupling | Standard: | OEM |
| Highlight: | 0.5'' Hydraulic Quick Connect Couplings,IATF16949 Hydraulic Quick Connect Couplings,BSP high pressure quick release coupling |
||
Applications in agricultural machinery Iron and steel industry Agricultural Quick couplings

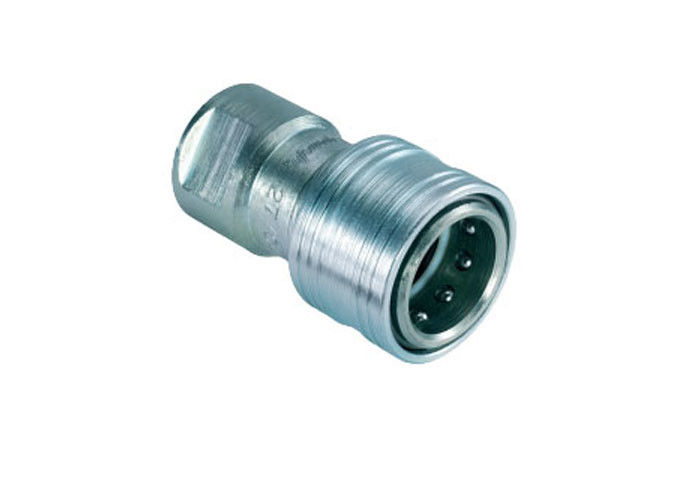

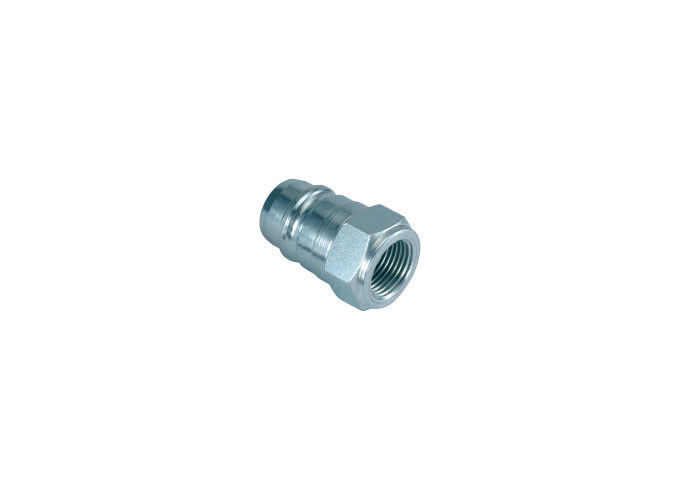

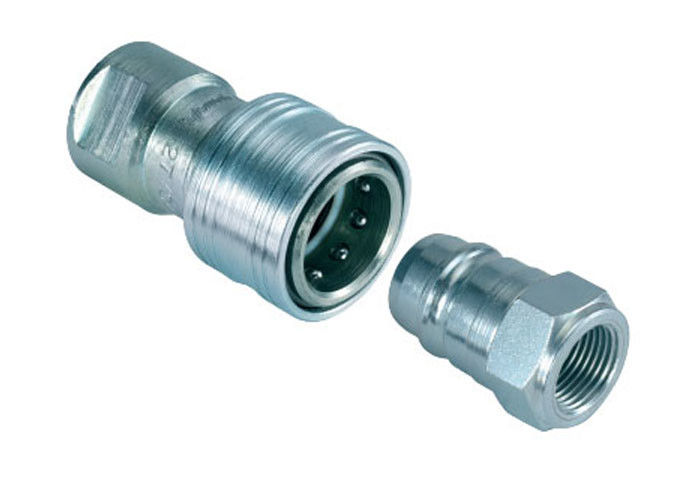

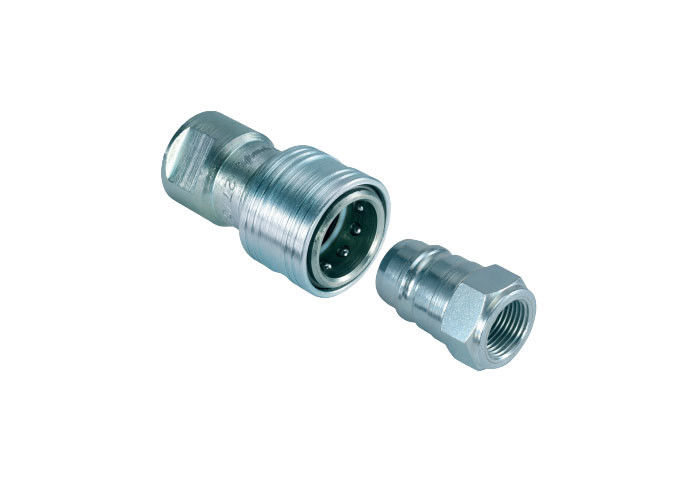

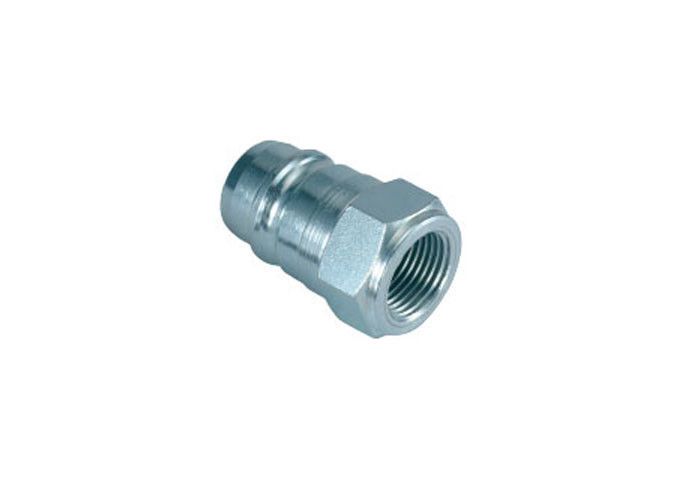

Hansen's H55000 series hydraulic ball valved quick disconnect coupling is ideal for agriculture and
forestry equipment.
Product Features
• May interchange with other makes of couplings with same profile
• Pull-to-connect double shut off valve
• Stainless steel ball valves and springs
• Standard body material: Zinc trivalent plated steel
• Standard seal: NBR
Applications & Markets
• Hydraulic Circuits and
Equipment
• Forestry
• Agriculture
• Iron and Steel Industry
| Body Size | PARTNO. | Thread | A | B | HEX |
| 3/8" | HA5502100 | G3/8 | 59 | 34 | 23 |
| 1/2" | HA5503100 | G1/2 | 69 | 38 | 27 |
| Body Size | PARTNO. | Thread | C | D | HEX |
| 3/8" | HA5502200 | G3/8 | 42 | 19 | 23 |
| 1/2" | HA5503200 | G1/2 | 50 | 20.6 | 27 |
