Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Coupling | Application: | Pneumatic Tools |
|---|---|---|---|
| Standard: | BSP | Nominal: | 1/4 |
| Type: | Coupling | Pressure: | 42Mpa |
| Temperature: | -20℃ ~ 80℃ | Flow: | 5 |
| Highlight: | Close Type Hydraulic Quick Couplings,ISO7241B Hydraulic Quick Couplings,NBR Seal Hydraulic Quick Couplings |
||

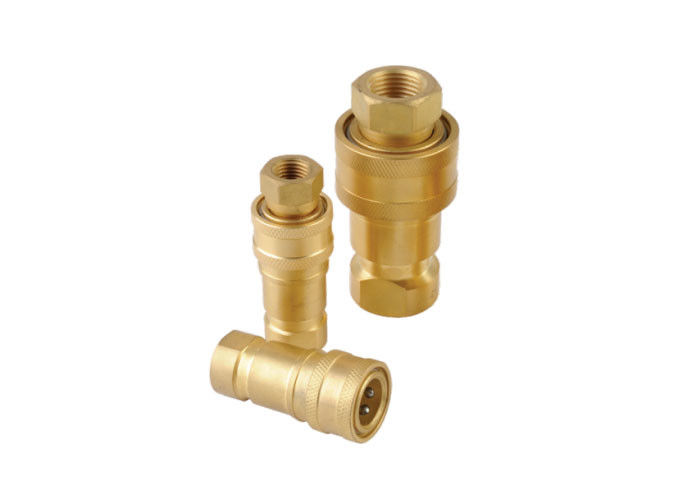

This product description provides detailed information about ISO 7241-B hydraulic quick couplings, designed for industrial applications with emphasis on performance and compatibility features.
ISO 7241-B hydraulic quick couplings find extensive use across diverse industrial sectors. In North America particularly, these couplings are the preferred choice for chemical industry applications. Their robust design and reliable performance make them equally suitable for construction equipment, agricultural machinery, manufacturing systems, and transportation applications where hydraulic power is essential.
BRASS
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 1/4" | 5000 | 3 | -20℃~+80℃ | NBR |
| 3/8" | 4000 | 6 | ||
| 1/2" | 4000 | 12 | ||
| 3/4" | 3000 | 28 | ||
| 1" | 3000 | 50 |

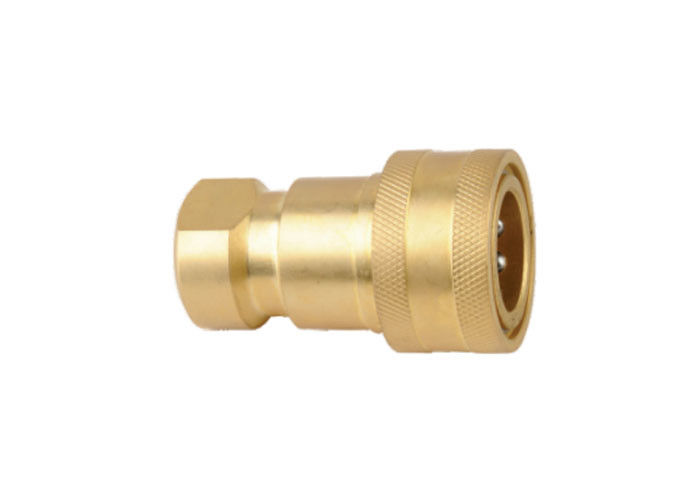

| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/4" | CB-S2B-1FG | 58 | 28.5 | 19 | 13 | G1/4 |
| 1/4" | CB-S2B-1FN | 58 | 28.5 | 19 | 13 | NPT1/4 |
| 3/8" | CB-S3B-1FG | 65 | 35 | 22 | 14 | G3/8 |
| 3/8" | CB-S3B-1FN | 65 | 35 | 22 | 14 | NPT3/8 |
| 1/2" | CB-S4B-1FG | 74 | 44.5 | 28.5 | 18 | G1/2 |
| 1/2" | CB-S4B-1FN | 74 | 44.5 | 28.5 | 18 | NPT1/2 |
| 3/4" | CB-S6B-1FG | 92 | 54 | 36 | 22 | G3/4 |
| 3/4" | CB-S6B-1FN | 92 | 54 | 36 | 22 | NPT3/4 |
| 1" | CB-S8B-1FG | 105 | 65 | 41 | 23 | G1 |
| 1" | CB-S8B-1FN | 105 | 65 | 41 | 23 | NPT1 |

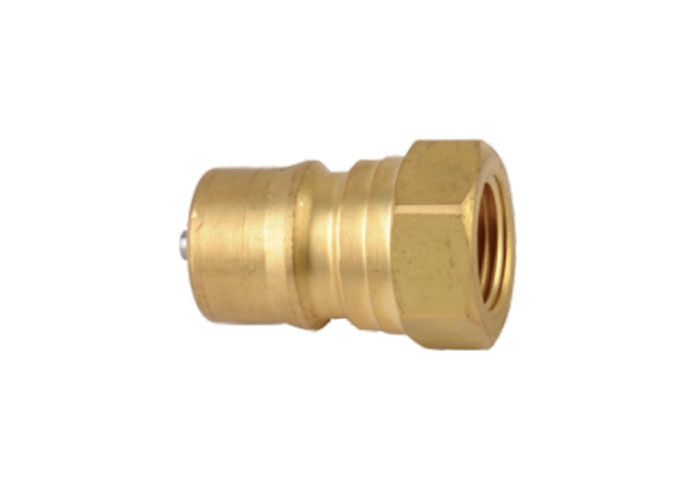

| Body Size | PARTNO. | LP | C | HP | A | T |
| 1/4" | CB-P2B-1FG | 35.5 | 22.8 | 19*6角 | 13 | G1/4 |
| 1/4" | CB-P2B-1FN | 35.5 | 22.8 | 19*6角 | 13 | NPT1/4 |
| 3/8" | CB-P3B-1FG | 40 | 25 | 22*6角 | 14 | G3/8 |
| 3/8" | CB-P3B-1FN | 40 | 25 | 22*6角 | 14 | NPT3/8 |
| 1/2" | CB-P4B-1FG | 46.5 | 28 | 27*6角 | 18 | G1/2 |
| 1/2" | CB-P4B-1FN | 46.5 | 28 | 27*6角 | 18 | NPT1/2 |
| 3/4" | CB-P6B-1FG | 56 | 36 | 36*6角 | 22 | G3/4 |
| 3/4" | CB-P6B-1FN | 56 | 36 | 36*6角 | 22 | NPT3/4 |
| 1" | CB-P8B-1FG | 65 | 45 | 41*6角 | 23 | G1 |
| 1" | CB-P8B-1FN | 65 | 45 | 41*6角 | 23 | NPT1 |
