| Name: | Braided Flexible Hose | Connection: | Flange |
|---|---|---|---|
| Min. Bend Radius: | 230 Mm | Size: | DN8-DN400 |
| Tolerance: | ±1% | Standard Of Flange: | DIN,ANSI,ISO Etc |
| Length: | Customized | Medium: | Air, Steam, Water, Oil And Other Industrial Gases, |
| Material Of Bellow: | Stainless Steel 304,316L | ||
| Highlight: | Flange Connector Ultra High Pressure Hose,Stainless Steel Wire Braided Hose,Metal Braided Flexible Hose |
||

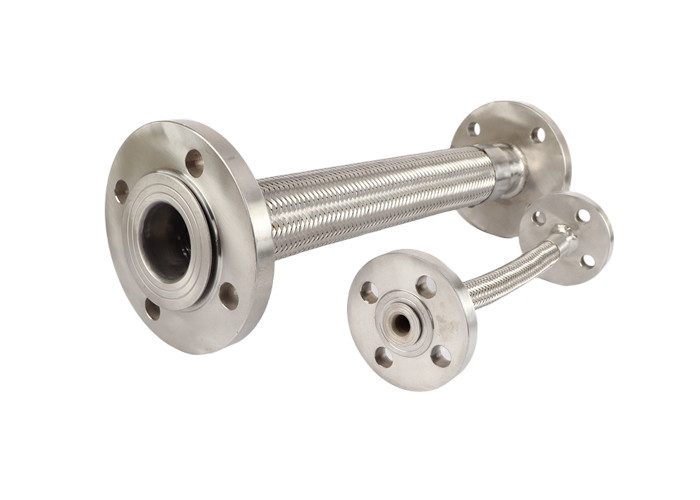

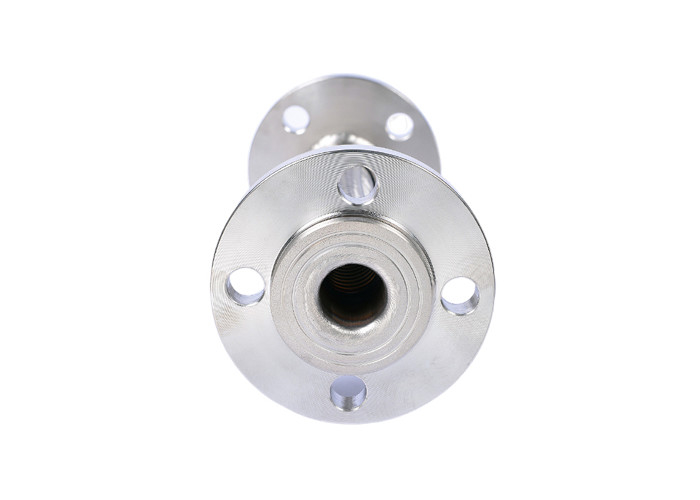

Flange connector style stainless steel wire metal braided flexible hose
Character of our high quality ss304 braided flexible flange pipes Stainless Steel Braided Joint has good softness, anti-fatigue, high pressure resistant, high and low temperature resistant, corrosion resistant and other characters.
The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows, the outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters,the joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.
Product Description
| Product name | DN150 style oil Pipe metal flange connection SS 304 braided bellows flexible stainless steel hose |
| Size | DN8-DN400 |
| Material of braid mesh | Stainless steel 304,316L,etc. |
| Working Pressure | 0.6 Mpa ~2.5 Mpa |
| Role | vibration reduction and noise reduction, absorption of pipeline settlement |
| Applicable media | Air, water ,hot Water, Oil, steam etc. |
| Technical parameter | |||||||
| Nominal diameter DN |
Inner diameter (mm) |
Outer diameter | Minimum bending radius | Working pressure | |||
| Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 |
| 80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
Applications: industry, chemical industry, natural gas, food hygiene, biopharmaceuticals, pressure vessels, sewage treatment, vacuum treatment, oil and waterway, etc.
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
