Product Details:
Payment & Shipping Terms:
|
| Compatible: | Rectus 25KA And 26KA Series | Surface: | Smooth Surface |
|---|---|---|---|
| Working Pressure: | 0.6 Mpa ~2.5 Mpa | Certifications: | NSF/ANSI 61, CUPC |
| Pressure: | 100bar | Technology: | CNC Machining |
| Product Type: | Connectors | Nominal Flow Diameter: | 0.1'' |
| Welding Form: | Insert The Pipe Into The Flange To Weld | Mainly: | Fluid |
| Ease Of Use: | Easy | Seal Ring: | EPDM/FKM/NBR |
| Seals: | Viton | Feature: | Corrosion Resistant |
| Keyword: | Pneumatic Fitting Connector | ||
| Highlight: | Pneumatic Elbow external thread fittings,Elbow External Thread Fittings |
||

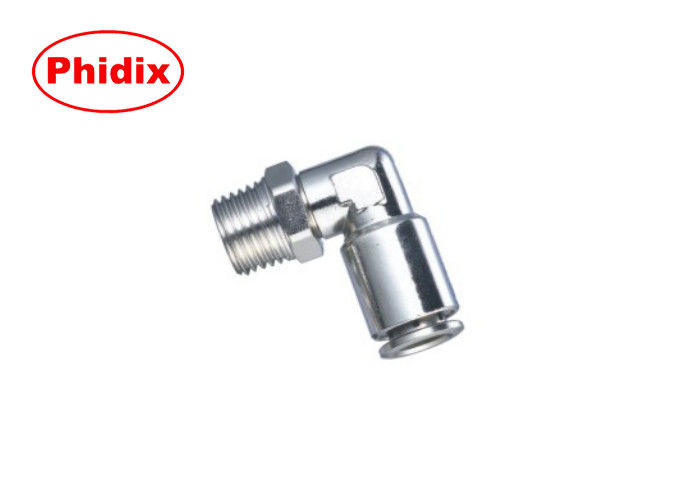

Elbow external thread fittings Insert-Type Pneumatic All-metal Connectors
Elbow external thread fittings in the context of insert-type pneumatic all-metal connectors refer to connectors that have an elbow shape and external threads for connecting to other components in a pneumatic system. These fittings are designed to allow for changes in direction within the system while maintaining a secure and leak-free connection.
The all-metal construction of these connectors, typically made from materials like stainless steel, copper, or nickel, ensures durability and resistance to corrosion, making them suitable for use in demanding pneumatic applications.
lnserted pipe fittings
| Texture | Pure copper nickel plating | Productfeatures | Full brass manufacturing, nickel plated, using the novel structure of oll seal, Small and exquisitldvolume,beautifulnadelling and conveniednt disassembling nake the pneumatic system greatlysimplifiled. if users need other materials, we can negotiate the customization. |
| Standard working pressure | 0-1.6Mpa | ||
| Oll seal | NBR FR |
Scope of application | Insert pipe fittings can be used with PA, PU, PE hose in compressed air circuit, connectingcylinders,valves and pneumatic logic elements, etc. |
| Operating temperature | -20°- 80° -20°- 200° |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
