Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Standard: | ISO5676 |
|---|---|---|---|
| Rated Pressure: | 5000PSI | Rated Flow: | 3GPM |
| Temperature: | -20℃~80℃ | Size: | 1/4-1'' |
| Seal Material: | NBR | Compatible With: | PARKER 4000 Series, FASTER NS/NV Series |
| Highlight: | ISO5676 Hydraulic Quick Couplings,Carbon Steel Hydraulic Quick Couplings,NBR Seal ISO 5675 Coupler |
||
1. The Series hydraulic quick couplings are mainly used for construction equipment, forestry equipment,hydraulic machinery and oil equipment and other required hydraulic applications.
2. Poppet valves are available to prevent uncoupled leakage .Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Hard chrome alloy balls are used for valving.It be loaded on the valve seat by the springs.
4. Critical parts are hardened for durability.
5 The series conforms to the standard of ISO5675.
6 Compatible with PARKER 4000 Series, FASTER NS/NV Series.
Specifications:
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 5000 | 4000 | 4000 | 3000 | 3000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range(std seals) | -20℃ to +80℃ | ||||
| Standard seal material | NBR | ||||

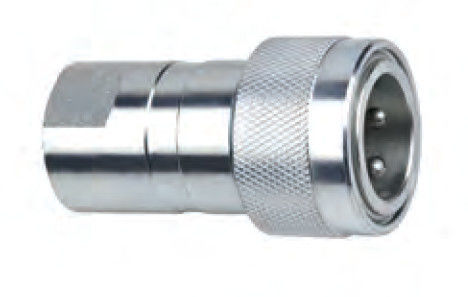

| ISO | PARTNO. | LS | ￠ D | HEX1 | A | T |
| 6.3 | CB-S2S-PK | 55.5 | 27.6 | 22.2 | 12.5 | G1/4 NPT1/4 |
| 10 | CB-S3S-PK | 60.5 | 34 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | CB-S4S-PK | 68 | 38 | 27 | 16 | G1/2 NPT1/2 |
| 20 | CB-S6S-PK | 83 | 47.5 | 35 | 18 | G3/4 NPT3/4 |
| 20 | CB-S6S-PK(E) | 82.5 | 48.2 | 34 | 19 | G3/4 NPT3/4 |
| 25 | CB-S8S-PK | 97.5 | 56.2 | 41 | 21 | G1 NPT1 |

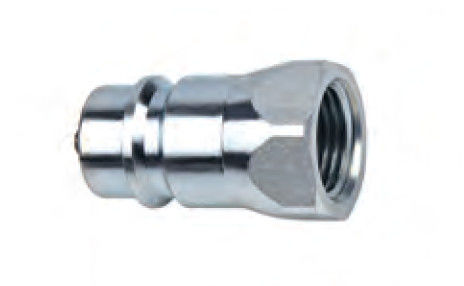

| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 6.3 | CB-P2S-PK | 36 | 14.2 | 18.5 | 19 | 12.5 | G1/4 NPT1/4 |
| 10 | CB-P3S-PK | 40 | 19 | 22 | 24 | 13 | G3/8 NPT3/8 |
| 12.5 | CB-P4S-PK | 46 | 20.5 | 29 | 27 | 18 | G1/2 NPT1/2 |
| 20 | CB-P6S-PK | 51 | 26.9 | 28.5 | 33.3 | 18 | G3/4 NPT3/4 |
| 20 | CB-P6S-PK(E) | 53.5 | 28 | 32 | 34 | 19 | G3/4 NPT3/4 |
| 25 | CB-P8S-PK | 64 | 31.3 | 34 | 41 | 21 | G1" NPT1" |
