Product Details:
Payment & Shipping Terms:
|
| Features: | Single Shut-off | Name: | MOULD COUPLER |
|---|---|---|---|
| Material: | Brass | Connection: | Female/Male/Hose |
| Temperature: | -20℃~120°C | Compatible: | NITTO K Series |
| Working Pressure: | 1.0MPa | Application: | The Line Of Modular |
| Highlight: | Brass Quick Coupling Mould,Brass Universal Quick Coupler,Hose Brass Coupling Mould |
||

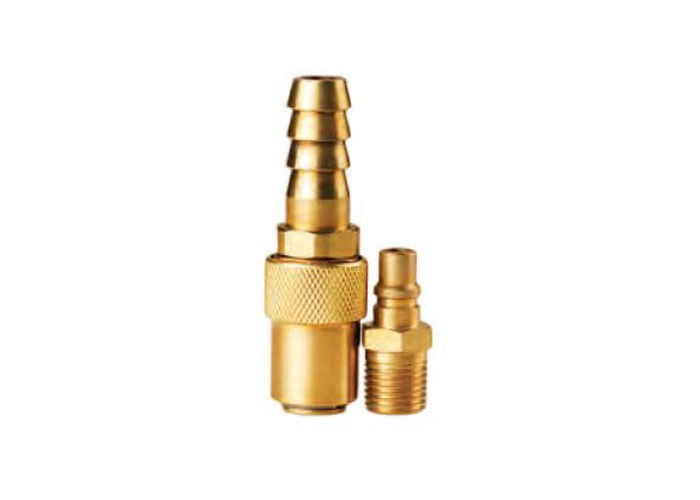

INTERCHANGEABILITY NITTO K SERIES SINGLE SHUT-OFF MOULD BRASS QUICK COUPLING
K MOULD QUICK COUPLING(SINGLE SHUT-OFF)(BRASS)
→ Features: it specifically design for the cooling system and injecting mold machine, single shut-off.
→ Advantages: Single hand operation, Small dimensions.
→ Application: the line of modular, cooling system.
→ Interchangeability: NITTO K series.
→ Working Pressure:1.0Mpa.
→ Working Temperature: -20℃ to +120℃.
| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| CB-K-02SM | 51 | 21 | 17 | 13 | ZG1/4 | ￠6 |
| CB-K-03SM | 51 | 21 | 17 | 13 | ZG3/8 | ￠6 |
| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| CB-K-02SF | 46.5 | 21 | 17 | 13 | ZG1/4 | ￠6 |
| CB-K-03SF | 51 | 21 | 19 | 13 | ZG3/8 | ￠6 |
| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| CB-K-02SH | 68 | 21 | 17 | 21 | 8 | ￠5 |
| CB-K-03SH | 59 | 21 | 17 | 21 | 12 | ￠7 |
| PARTNO. | LP | C | HEX2 | A | T | d |
| CB-K-01PM | 31 | 15 | 14 | 10 | ZG1/8 | ￠6 |
| CB-K-02PM | 33 | 15 | 14 | 13 | ZG1/4 | ￠6 |
| PARTNO. | LP | C | HEX2 | T | d |
| CB-K-02PM | 75 | 15 | 14 | ZG1/4 | ￠6 |
| CB-K-02PM | 100 | 15 | 14 | ZG1/4 | ￠6 |
| CB-K-02PM | 125 | 15 | 14 | ZG1/4 | ￠6 |
| CB-K-02PM | 150 | 15 | 14 | ZG1/4 | ￠6 |
| PARTNO. | LP | C | HEX2 | T | d |
| CB-K-03PM | 75 | 15 | 17 | ZG3/8 | ￠6 |
| CB-K-03PM | 100 | 15 | 17 | ZG3/8 | ￠6 |
| CB-K-03PM | 125 | 15 | 17 | ZG3/8 | ￠6 |
| CB-K-03PM | 150 | 15 | 17 | ZG3/8 | ￠6 |
