Product Details:
Payment & Shipping Terms:
|
| Name: | Coupling | Nominal Bores: | 6, 9, 12 And 16 Mm |
|---|---|---|---|
| Media: | Aggressive Fluids Or Gases | Seals: | FFKM |
| Material: | Stainless Steel | Springs: | Hastelloy |
| Application: | Agressive Fluids Or Gases | Working Pressure: | Up To 350 Bar / 5.075 Psi |
| Highlight: | Aggressive Fluids High Pressure Coupling,Gases High Pressure Coupling FFKM,Chemical Stainless Steel Coupler 12mm |
||

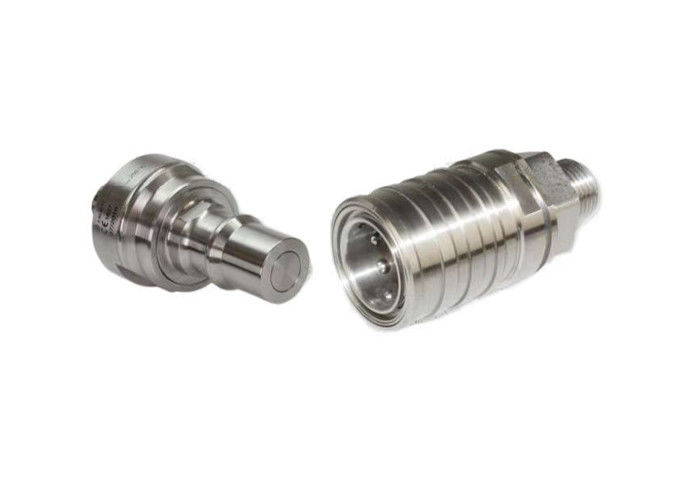

For agressive fluids or gases in the chemical industry with high pressure Coupling
Description: The clean-break coupling is designed for agressive fluids or gases in the chemical industry with high pressure and high temperature. Depending on nominal bore and max. process temperatures (Tmax=250℃/482 F) the max. pressure gases goes up to 350 bar / 5.075 psi. All individual parts are perfectly matched and therefore this coupling series features easy handling combined with very high flow-rates, low pressure drop and very good clean-break characteristics. During coupling process only a minimum of the surrounding atmosphere is trapped into the system. Accordingly the volume set free when disconnecting is also minimal.
Features:
• Safe for the worker: absolutely squirt-free and only minimal leakage when disconnecting
• Good for your process: minimal air intake when connecting
• Robust and durable: high-quality stainless steel 1.4404 / 1.4462 / 1.4529
• Long service life: FFKM seals and springs made of Hastelloy
• Easy to clean and to maintain: high-quality surface finishing and easy-to-replace seals
• Efficiency: high flow-rates / low pressure drops
| Nominal bore (mm) | Value | Leakage volume (ml) |
| 6 | 1 | 0.05 |
| 9 | 3.2 | 0.1 |
| 12 | 4.5 | 0.19 |
| 16 | 8.0 | 0.2 |
