Product Details:
Payment & Shipping Terms:
|
| Used: | Railway Maintenance | Name: | Hydraulic Coupling |
|---|---|---|---|
| Pressure: | 10000PSI | Size: | 3/8 |
| Material: | Steel | Technics: | Casting |
| Thread: | Female | Temperature: | -20℃ To +120℃ |
| Highlight: | 10000PSI Hydraulic Quick Coupler,OEM High Pressure Hydraulic Quick Coupler,3/8 High Pressure Quick Coupler |
||

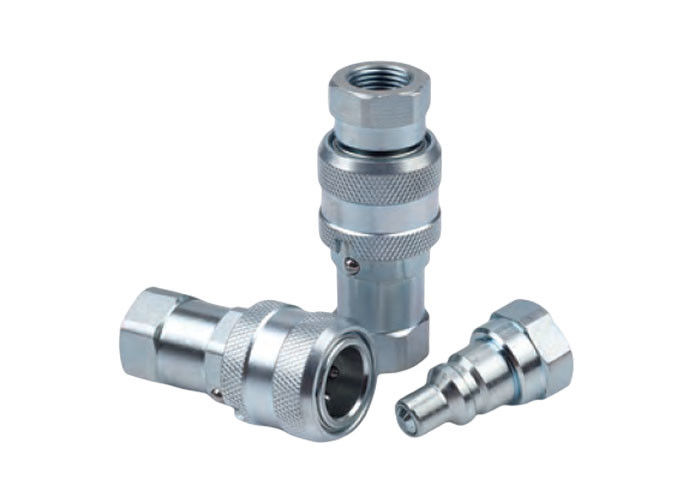

TC close type Super high pressure hydraulic quick coupling(steel)
Applications: The TC series couplings are found in the construction, railway maintenance and house moving industries. Used on hydraulic jacking equipment, these couplers eliminate costly down time caused by improperly connected threaded types. For use where high pressure capability is required coupled with positive coupling action. Considerably faster to use than threaded types.
Specifications:
| Body Size(in) | 3/8 |
| Rated Pressure(PSI) | 10.000 |
| Rated Flow(GPM) | 6 |
| Temperature Range(std seals) | -20℃ to +120℃ |
| tandard seal material | NBR |
TC Features:
1. Positive valve stop, the perch maintains valve alignment and provides metal to metal valve stop to ensure that the valves open fully, every time.
2. Precision machined valves with electrometric seal provide for positive shut-off upon disconnection.
3. Hardened nipples and sleeves and solid barstock construction make for a quality coupling with max-imum resistance to damage from hydraulic and mechanical shock.
4. Durable ball-locking mechanism assures reliable connection every time. A large number of locking balls distributes and work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life. CAUTION: These products are not to be used as swivels; rotation under pressure will result in excessive and premature wear.
5. Sleeve locking mechanism prevents accidental disconnection when coupling is dragged along the ground
6. Compatible with PARKER TC Series
| PARTNO. | T | ￠D | HEX1 | HEX2 | L | LS | LP |
| CB-SP3S-TC | NPT3/8 | 32 | 24 | 24 | 78.7 | 62.5 | 44.2 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
