Product Details:
Payment & Shipping Terms:
|
| Used: | Hydraulic Fluid Transfer | Product Name: | Quick Coupling |
|---|---|---|---|
| Pressure: | 10000PSI | Size: | 1/4"-1 |
| Material: | High Resistance Carbon Steel | Packing: | Carton |
| Technics: | Casting | Working Pressure: | 8700 PSI |
| Highlight: | 10000PSI High Pressure Quick Coupler,0.25in High Pressure Quick Coupler,IATF16949 quick connect coupling high pressure |
||

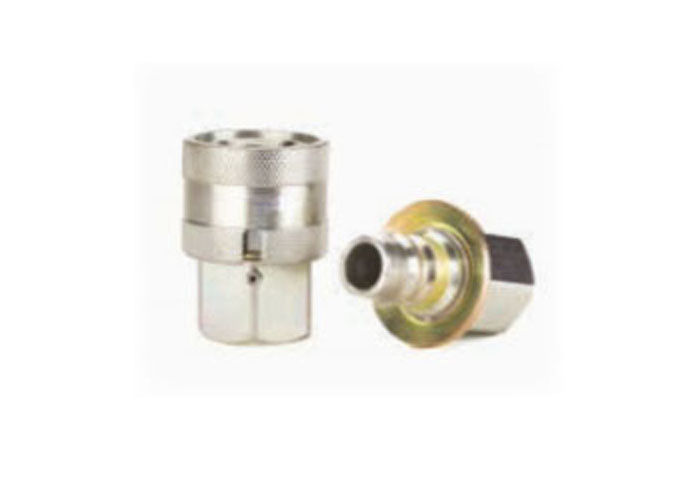

High Pressure Thread to Connect Flush Face for high pressure High Pressure Quick Coupler
Applications & Markets • Hydraulic fluid transfer • High impulse hydraulics • Oil field • Mining
Features
CB-2-B Series High Pressure Thread Together Flush Face Series is designed for high pressure and high impulse applications for hydraulic circuits. The Series design provides low connect and disconnect force in hydraulic circuits where trapped residual pressure must be addressed. The flush face design limits contamination and unwanted fluid loss. The Series is available in sizes 1/4” through 2” to best meet your specific size requirements.
| Body Size | PARTNO. | Thread | A | B | HEX |
| 3/8" | CB-S3S-2FN-B | 3/8-18 | 2.59 | 1.65 | 1.18 |
| 3/8" | CB-S3S-2FN-B | 1/2-14 | 2.79 | 1.65 | 1.06 |
| 1/2" | CB-S4S-2FN-B | 1/2-14 | 3.06 | 1.96 | 1.42 |
| 1/2" | CB-S4S-2FN-B | 3/4-14 | 3.06 | 1.96 | 1.42 |
| 3/4" | CB-S6S-2FN-B | 3/4-14 | 3.34 | 2.12 | 1.61 |
| 1" | CB-S8S-2FN-B | 1-11 1/2 | 3.93 | 2.31 | 1.81 |
| Body Size | PARTNO. | Thread | C | D | HEX |
| 3/8" | CB-S3S-2FN-B | 3/8-18 | 3.25 | 1.49 | 1.06 |
| 3/8" | CB-S3S-2FN-B | 1/2-14 | 3.35 | 1.49 | 1.06 |
| 1/2" | CB-S4S-2FN-B | 1/2-14 | 3.74 | 1.80 | 1.42 |
| 1/2" | CB-S4S-2FN-B | 3/4-14 | 3.83 | 1.80 | 1.42 |
| 3/4" | CB-S6S-2FN-B | 3/4-14 | 3.90 | 1.96 | 1.42 |
| 1" | CB-S8S-2FN-B | 1-11 1/2 | 4.47 | 2.16 | 1.81 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
