Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Coupling | Application: | Hydraulic |
|---|---|---|---|
| Standard: | ISO7241B | Nominal: | 1/4-1 |
| Type: | Coupling | Pressure: | 1000PSI |
| Temperature: | -20℃ ~ +120℃ | Rated Flow: | 3-50GPM |
| Highlight: | 50GPM Hydraulic Quick Coupler,Hydraulic Quick Coupler 1000PSI,NBR Seal Hydraulic Quick Coupler |
||

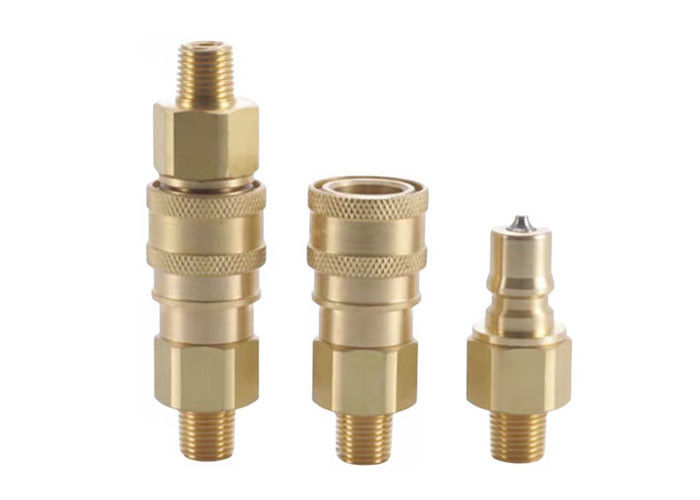

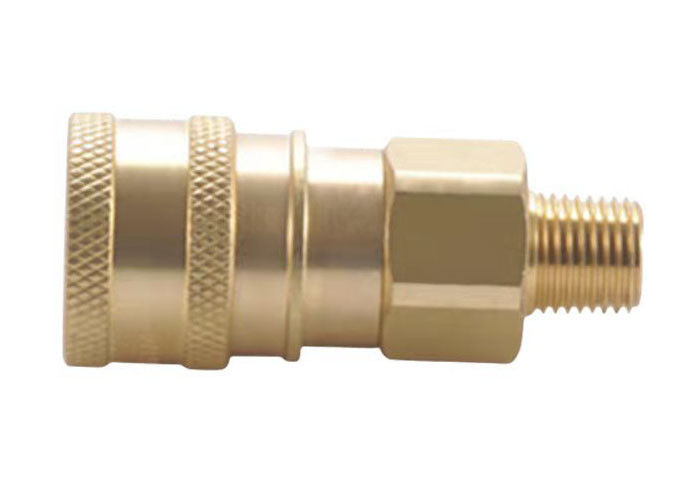

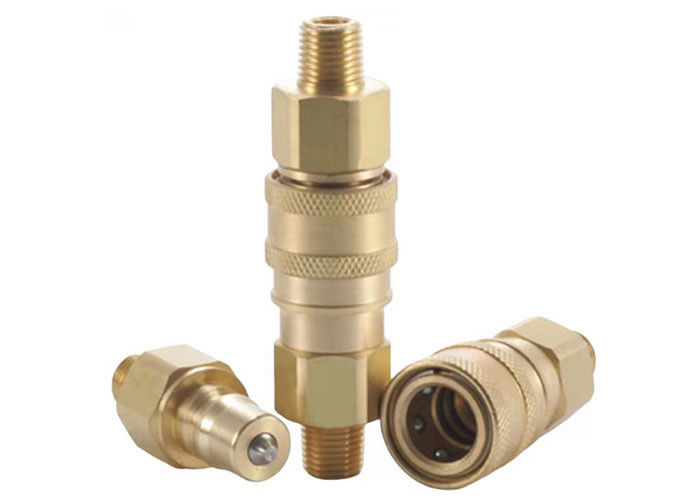

Medium-pressure high performance pneumatic and hydraulic quick coupling(BRASS)
Applications: It used across the spectrum of hydraulic applications,These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment,and a loss of fluid is undesirable.It used on construction Equipment,forestry equipment,agricultural Machinery,oil tools,steel mill machinery,and other demanding hydraulic applications.
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range | -20℃ to +120℃ | ||||
| Stander seal material | NBR | ||||
Feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. LSQ-S8 series conforms to the standard of ISO 7241-B.
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series
Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.
| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/4" | CB-S2B-1M | 62.5 | 27 | 22 | 13 | ZG1/4 NPT1/4 |
| 3/8" | CB-S3B-1M | 68.5 | 35 | 27 | 13 | ZG3/8 NPT3/8 |
| 1/2" | CB-S4B-1M | 77.5 | 45 | 30 | 16 | ZG1/2 NPT1/2 |
| 3/4" | CB-S6B-1M | 93.5 | 54 | 36 | 18 | ZG3/4 NPT3/4 |
| 1" | CB-S8B-1M | 98 | 64.5 | 41 | 20 | ZG1 NPT1 |
| Body Size | PARTNO. | LP | d | C | HP | A | T |
| 1/4" | CB-P2B-1M | 53 | 14.2 | 22.5 | 22 | 13 | ZG1/4 NPT1/4 |
| 3/8" | CB-P3B-1M | 55.5 | 19 | 25 | 27 | 13 | ZG3/8 NPT3/8 |
| 1/2" | CB-P4B-1M | 64.5 | 23.5 | 28 | 30 | 16 | ZG1/2 NPT1/2 |
| 3/4" | CB-P6B-1M | 74.5 | 31.4 | 36 | 36 | 18 | ZG3/4 NPT3/4 |
| 1" | CB-P8B-1M | 78 | 37.8 | 40 | 41 | 20 | ZG1 NPT1 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
