Product Details:
Payment & Shipping Terms:
|
| Connection: | Female | Name: | Coupling |
|---|---|---|---|
| Size: | 1/4",3/8 | Material: | High Strength Steel |
| Working Pressure: | 700bar | Application: | Water Cooling Line |
| Technics: | Casting | Packing: | Carton |
| Highlight: | 700 bar High Pressure Quick Coupler,10152psi High Pressure Quick Coupler,EPDM high pressure quick disconnect fittings |
||

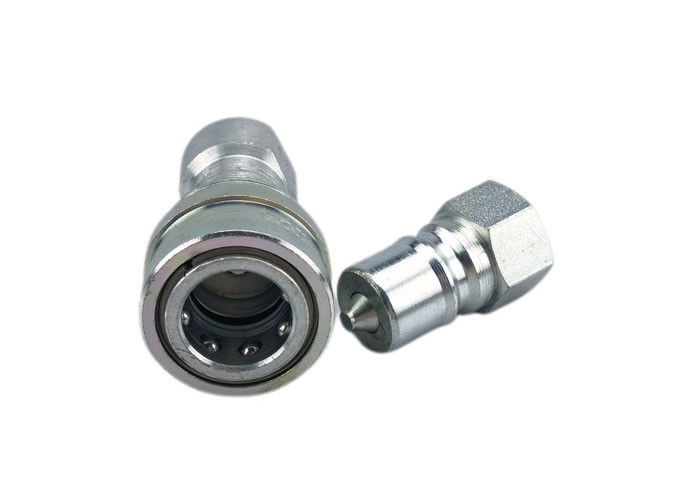

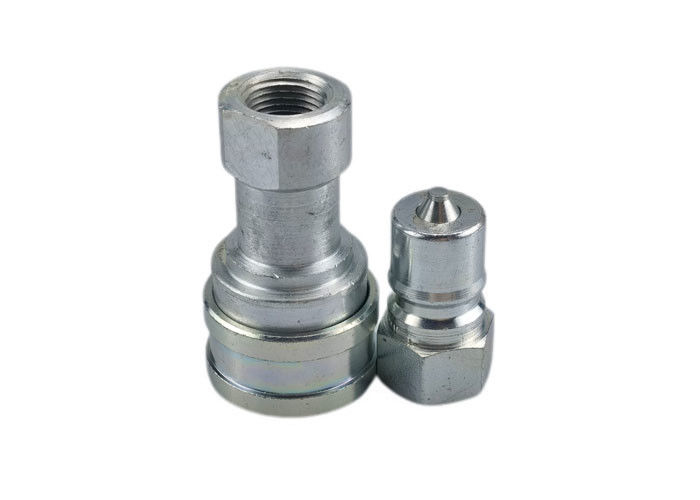

High strength steel bodies and valves Female End Connections High Pressure Quick disconnect
CB-2-A Series is a high pressure hydraulic quick connect coupling designed to operate at pressures up to 700bar. Standard Materials:High strength steel bodies and valves, Seals: NBR, Viton, EPDM
Features
| Body Size | PARTNO. | Thread | A | B | Hex |
| 1/4" |
CB-S2S-2MN-A CB-S2S-2FN-A |
1/4-18 1/4-18 |
2.69 2.64 |
1.18 1.18 |
0.88 0.88 |
| 3/8" |
CB-S3S-2MN-A CB-S3S-2FN-A |
3/8-18 3/8-18 |
2.69 2.69 |
1.18 1.18 |
0.88 0.88 |
| Body Size | PARTNO. | Thread | C | D | Hex |
| 1/4" |
CB-P2S-2MN-A CB-P2S-2FN-A |
1/4-18 1/4-18 |
2.59 2.54 |
0.97 0.97 |
0.88 0.88 |
| 3/8" |
CB-P3S-2MN-A CB-P3S-2FN-A |
3/8-18 3/8-18 |
2.59 2.59 |
0.97 0.97 |
0.88 0.88 |
