Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Quick Coupler | Material: | Stainless Steel |
|---|---|---|---|
| Medium: | Fluid | Standard: | ISO7241B |
| Thread: | NPT/BSP | Size: | From 1/8 To 1 |
| Pressure: | 0 - 15 Bar | Oem: | Avaliable |
| Highlight: | Open Close Type Hydraulic Quick Coupler,SS Hydraulic Quick Coupler,ISO7241B Hydraulic Quick Coupler |
||

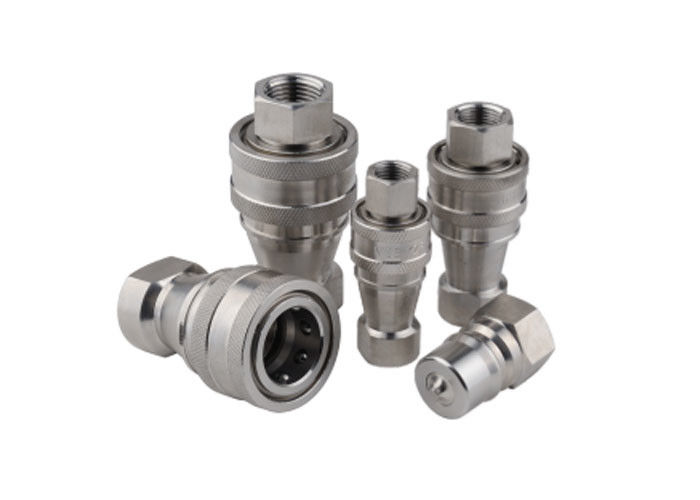

ISO7241B Stainless Steel Open and Close Type Hydraulic Quick Coupler
Features
CB-SPL-1FG/ CB-SPM-1FG are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.
Standard Materials

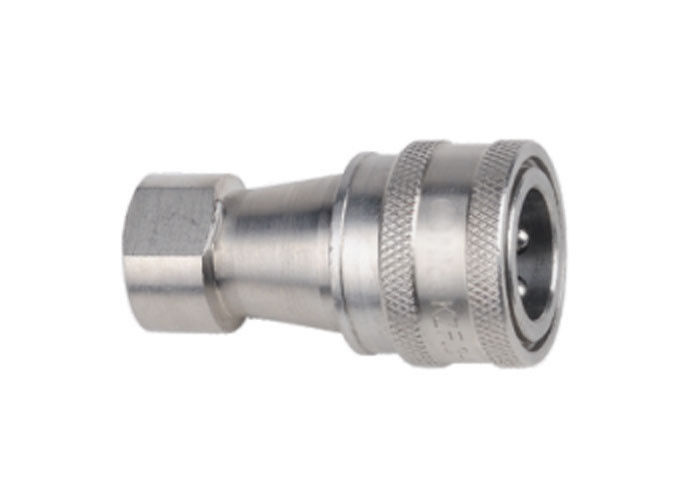

| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/8" | CB-S2L-1F | 48 | 24 | 2 | 10 | ZG1/8 |
| 1/4" | CB-S2L-1F | 58 | 28 | 2 | 12.5 | ZG1/4 |
| 3/8" | CB-S3L-1F | 65 | 35 | 2 | 13 | ZG3/8 |
| 1/2" | CB-S4L-1F | 72 | 45 | 2 | 14 | ZG1/2 |
| 3/4" | CB-S6L-1F | 88 | 55 | 2 | 17 | ZG3/4 |
| 1" | CB-S8L-1F | 102 | 65 | 2 | 23 | ZG1 |
| 1-1/4" | CB-S10L-1F | 115 | 79 | 2 | 27 | ZG1-1/4 |
| 1-1/2" | CB-S12L-1F | 124 | 79 | 2 | 27 | ZG1-1/2 |
| 2" | CB-S16L-1F | 132 | 109 | 2 | 30 | ZG2 |

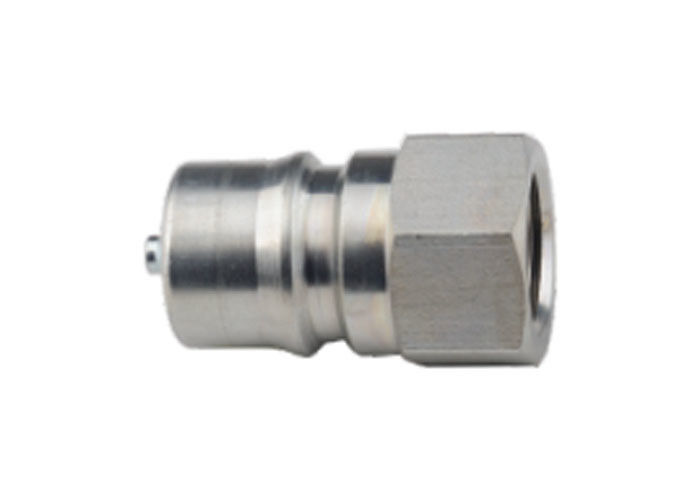

| Body Size | PARTNO. | LP | C | HP | A | T |
| 1/8" | CB-P2L-1F | 29 | 19 | 6 | 10 | ZG1/8 |
| 1/4" | CB-P2L-1F | 36 | 22.5 | 6 | 12.5 | ZG1/4 |
| 3/8" | CB-P3L-1F | 40 | 25 | 6 | 13 | ZG3/8 |
| 1/2" | CB-P4L-1F | 44 | 28 | 6 | 14 | ZG1/2 |
| 3/4" | CB-P6L-1F | 52 | 36 | 6 | 17 | ZG3/4 |
| 1" | CB-P8L-1F | 62 | 40 | 6 | 23 | ZG1 |
| 1-1/4" | CB-P10L-1F | 70 | 45 | 6 | 27 | ZG1-1/4 |
| 1-1/2" | CB-P12L-1F | 75 | 49 | 6 | 27 | ZG1-1/2 |
| 2" | CB-P16L-1F | 80 | 52 | 6 | 30 | ZG2 |
