Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Coupling | Application: | Pneumatic Tools |
|---|---|---|---|
| Standard: | BSP | Nominal: | 1/4 |
| Type: | Coupling | Pressure: | 42Mpa |
| Temperature: | -20℃ ~ 80℃ | Flow: | 5 |
| Highlight: | Close Type Hydraulic Quick Couplings,ISO7241B Hydraulic Quick Couplings,NBR Seal Hydraulic Quick Couplings |
||

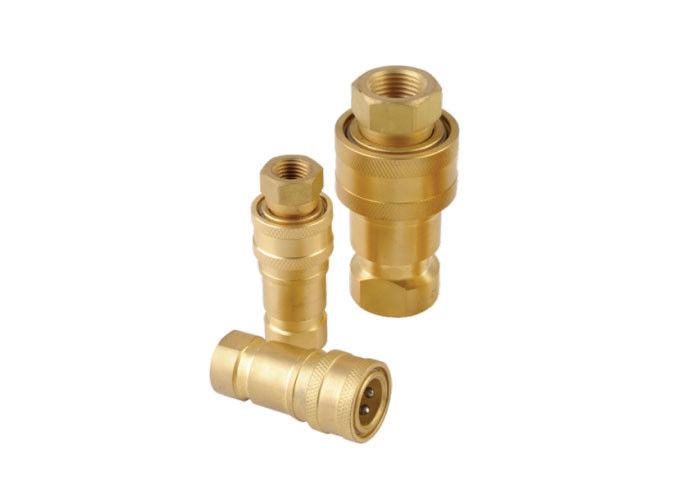

ISO7241B Open and Close Type Brass Hydraulic Quick Couplings
hydraulic coupling is a device used for
Open and Close Type Hydraulic Quick Couplings
1.The Series hydraulic quick couplings are mainly used for construction equipment,forestry equipment, hydraulic machinery and oil equipment and other required hydraulic applications.
2. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when
coupled within rated working pressure to keep the flow expeditely.
3. Material Brass
4. The series conforms to the standard of ISO7241- B
5. Compatible with PARKER 60 Series , FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.
BRASS
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 1/4" | 5000 | 3 | -20℃~+80℃ | NBR |
| 3/8" | 4000 | 6 | ||
| 1/2" | 4000 | 12 | ||
| 3/4" | 3000 | 28 | ||
| 1" | 3000 | 50 |

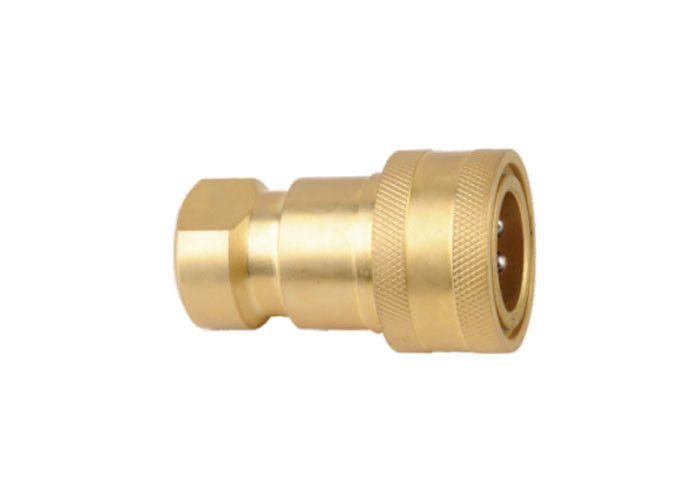

| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/4" | CB-S2B-1FG | 58 | 28.5 | 19 | 13 | G1/4 |
| 1/4" | CB-S2B-1FN | 58 | 28.5 | 19 | 13 | NPT1/4 |
| 3/8" | CB-S3B-1FG | 65 | 35 | 22 | 14 | G3/8 |
| 3/8" | CB-S3B-1FN | 65 | 35 | 22 | 14 | NPT3/8 |
| 1/2" | CB-S4B-1FG | 74 | 44.5 | 28.5 | 18 | G1/2 |
| 1/2" | CB-S4B-1FN | 74 | 44.5 | 28.5 | 18 | NPT1/2 |
| 3/4" | CB-S6B-1FG | 92 | 54 | 36 | 22 | G3/4 |
| 3/4" | CB-S6B-1FN | 92 | 54 | 36 | 22 | NPT3/4 |
| 1" | CB-S8B-1FG | 105 | 65 | 41 | 23 | G1 |
| 1" | CB-S8B-1FN | 105 | 65 | 41 | 23 | NPT1 |

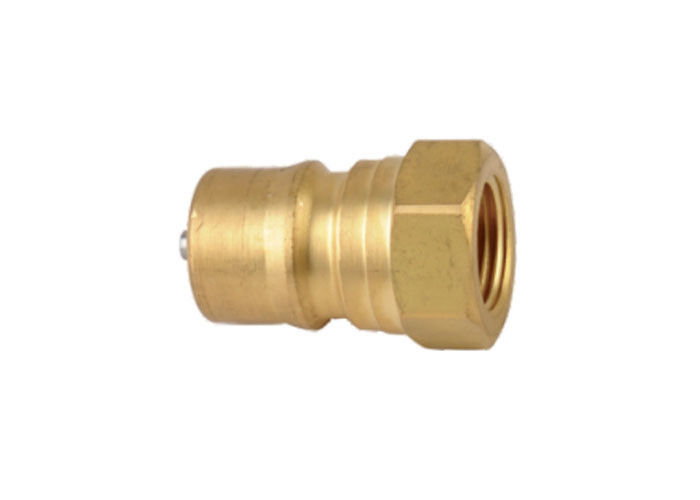

| Body Size | PARTNO. | LP | C | HP | A | T |
| 1/4" | CB-P2B-1FG | 35.5 | 22.8 | 19*6角 | 13 | G1/4 |
| 1/4" | CB-P2B-1FN | 35.5 | 22.8 | 19*6角 | 13 | NPT1/4 |
| 3/8" | CB-P3B-1FG | 40 | 25 | 22*6角 | 14 | G3/8 |
| 3/8" | CB-P3B-1FN | 40 | 25 | 22*6角 | 14 | NPT3/8 |
| 1/2" | CB-P4B-1FG | 46.5 | 28 | 27*6角 | 18 | G1/2 |
| 1/2" | CB-P4B-1FN | 46.5 | 28 | 27*6角 | 18 | NPT1/2 |
| 3/4" | CB-P6B-1FG | 56 | 36 | 36*6角 | 22 | G3/4 |
| 3/4" | CB-P6B-1FN | 56 | 36 | 36*6角 | 22 | NPT3/4 |
| 1" | CB-P8B-1FG | 65 | 45 | 41*6角 | 23 | G1 |
| 1" | CB-P8B-1FN | 65 | 45 | 41*6角 | 23 | NPT1 |
