Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic | Material: | Stainless Steel |
|---|---|---|---|
| Product Name: | Hydraulic Quick Coupler | Standard: | IATF16949 |
| Thread: | NPT/BSP | Size: | From 1/8 To 1 |
| Pressure: | 0 - 15 Bar | Oem: | Avaliable |
| Highlight: | IATF16949 Hydraulic Male Female Coupling,0.75in Hydraulic Male Female Coupling,BSP hydraulic quick disconnect fittings |
||

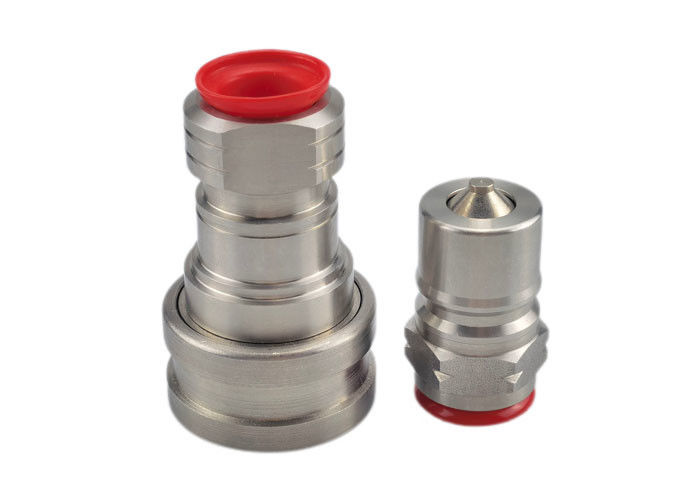

3/4'' CB-1 Series stainless steel 316 close type hydraulic quick coupling
best hydraulic quick coupler
Strictly product manufacturing and quality controlling can ensure all the cable assemblies and spare parts that we sold are satisfied with our customers by high-quality based on their diversified requirements.
CB-SPL-1FG/ CB-SPM-1FG are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | Across Flats |
| 1/8" | CB-S1S-1FG | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/8" | CB-S1S-1FN | 1/8-27 | 1.91 | 0.98 | 0.56 |
| 1/4" | CB-S2S-1FG | 1/4-19 | 2.26 | 1.17 | 0.75 |
| 1/4" | CB-S2S-1FN | 1/4-18 | 2.26 | 1.17 | 0.75 |
| 3/8" | CB-S3S-1FG | 3/8-19 | 2.56 | 1.42 | 0.88 |
| 3/8" | CB-S3S-1FN | 3/8-18 | 2.56 | 1.42 | 0.88 |
| 1/2" | CB-S4S-1FG | 1/2-14 | 2.96 | 1.86 | 1.13 |
| 1/2" | CB-S4S-1FN | 1/2-14 | 2.96 | 1.86 | 1.13 |
| 3/4" | CB-S6S-1FG | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 3/4" | CB-S6S-1FN | 3/4-14 | 3.48 | 2.22 | 1.31 |
| 1" | CB-S8S-1FG | 1-11 | 4.13 | 2.61 | 1.75 |
| 1" | CB-S8S-1FN | 1-11 | 4.13 | 2.61 | 1.75 |
| Body Size | PARTNO. | Thread | C | D | E | HEX |
| 1/8" | CB-P1S-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/8" | CB-P1S-1FG | 1/8-27 | 1.26 | 0.65 | 0.44 | 0.56 |
| 1/4" | CB-P2S-1FG | 1/4-19 | 1.52 | 0.87 | 0.56 | 0.75 |
| 1/4" | CB-P2S-1FN | 1/4-18 | 1.52 | 0.87 | 0.56 | 0.75 |
| 3/8" | CB-P3S-1FG | 3/8-19 | 1.76 | 1.01 | 0.61 | 0.88 |
| 3/8" | CB-P3S-1FN | 3/8-18 | 1.76 | 1.01 | 0.61 | 0.88 |
| 1/2" | CB-P4S-1FG | 1/2-14 | 2.03 | 1.30 | 0.76 | 1.13 |
| 1/2" | CB-P4S-1FN | 1/2-14 | 2.03 | 1.30 | 0.76 | 1.13 |
| 3/4" | CB-P6S-1FG | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 3/4" | CB-P6S-1FN | 3/4-14 | 2.36 | 1.52 | 0.71 | 1.31 |
| 1" | CB-P8S-1FG | 1-11 | 2.85 | 1.88 | 0.97 | 1.63 |
| 1" | CB-P8S-1FN | 1-11 | 2.85 | 1.88 | 0.97 | 1.63 |
