Product Details:
Payment & Shipping Terms:
|
| Features: | Easy To Use, Durable, Lightweight | Color: | Black |
|---|---|---|---|
| Compatibility: | Universal | Connectivity: | Quick Connect |
| Country Of Origin: | United States | Dimensions: | 2.5 X 1.5 X 0.5 Inches |
| Included Components: | Quick Connect Adapter, User Manual | Manufacturer: | Quick Connect Inc. |
| Material: | Plastic | Product Type: | Accessories |
| Size: | Small | Usage: | Connect Various Devices |
| Warranty: | 1 Year | Weight: | 0.5 Ounces |
| Highlight: | Thread Tubing And Casing Coupling,Casing Thread Coupling,API Spec 5CT Quick Connect Accessories |
||
API Spec 5CT Tubing and Casing thread coupling
Tubing and Casing thread coupling are machined according to the latest version of API Spec 5CT. It’s used to connect two pipes of same diameter with the same types of thread on the two ends.
The Steel Grade includes J55,K55,N80-1, N80Q, L80-1, P110 etc.
There are two types of thread widely used in Tubing thread coupling:Non-upset Thread(NUE) and External-upset Thread(EUE)
There are three types of thread widely used in Casing thread coupling: Long-Round Thread(LTC), Short-Round Thread(STC),Buttress Thread(BTC)

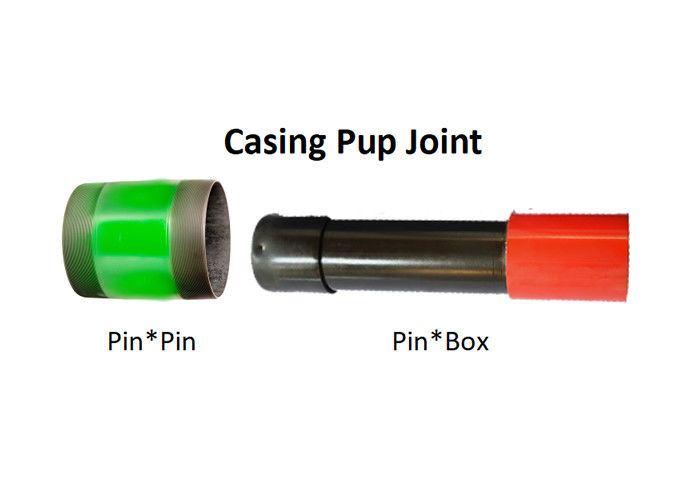

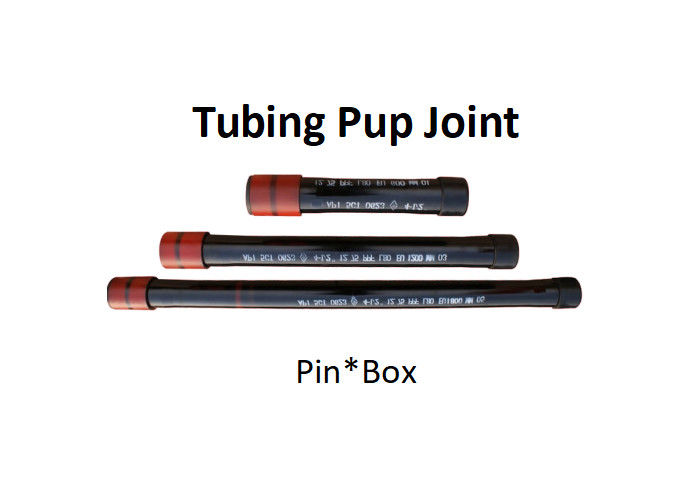

There are two types of End thread: Pin*Pin, Pin*Box(Pin*Pin with coupling)
| OD | Standard | Length | Connection | Steel Grade |
| 2 3/8”-4 1/2” | API 5CT | Customized | NUE/EUE | J55/K55/N80/L80/P110 |
| 4 1/2”-20” | API 5CT | Customized | LTC/STC/BTC | J55/K55/N80/L80/P110 |

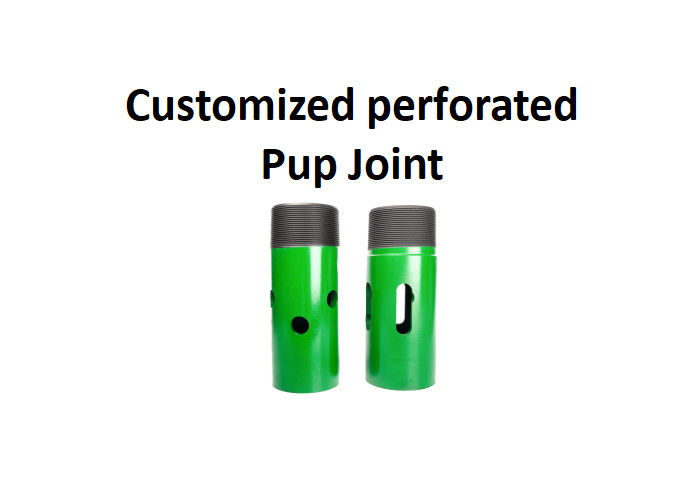

Remark: We can also produce Special thread coupling of API 5CT/5B Thread. Thanks for share the drawing.
