Product Details:
Payment & Shipping Terms:
|
| Material: | Solid Steel Barstock | Locking Mechanism: | Threaded Sleeve Union |
|---|---|---|---|
| Valve Type: | Chrome Alloy Ball Valves | Pressure Rating: | Extreme High-Pressure (10,000+ PSI) |
| Seal Material: | Polyurethane | Compatibility: | Parker 3000 Series & Faster PVVM Series |
| Connection Type: | Manual Thread-Locked Quick Disconnect | Application: | Hydraulic Jacks, Mining, Heavy Machinery |
| Certification: | ISO-Compliant Safety Standards | Maintenance: | Spring-Loaded Valves |
| Highlight: | Polished Female High Pressure Quick Coupler,Industrial NPT High Pressure Coupler |
||

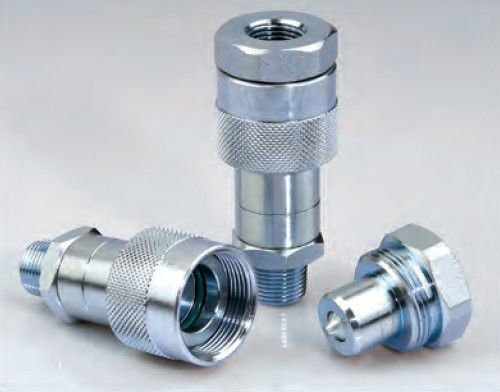

KZE-B Thread Locked Hydraulic Couplings / High-Pressure Quick Connect for Hydraulic Jacks
The KZE-B Series Thread Locked Hydraulic Couplings are precision-engineered from solid steel barstock for extreme high-pressure applications, including portable hydraulic jacks. Featuring a threaded sleeve locking mechanism, these couplings securely mate with male-threaded nipples, ensuring leak-free connections under demanding conditions.
| PARTNO. | LS | ￠D | HEX1 | A | T |
| KZE-B-02SM | 59.6 | 28.5 | 22 | 13.5 | NPT1/4 |
| KZE-B-03SM | 72.5 | 35 | 25 | 14.4 | NPT3/8 |
| PARTNO. | LP | C | HEX2 | A | T |
| KZE-B-02PF | 32.5 | 11.2 | 19 | 13 | NPT1/4 |
| KZE-B-03PF | 35 | 16 | 32 | 13.5 | NPT3/8 |
