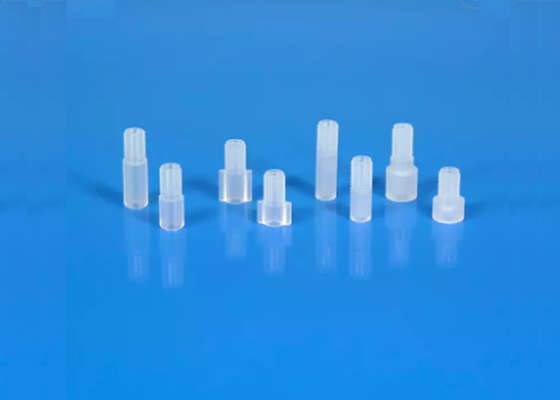

Imported Material Plastic Connector M6 1/4-28UNF Male Thread Flanged Fitting
Product Feature
Flanged fittings perform well in high pressure (up to 1.5Mpa even higher) and non-movable systems.
PP or PTFE, 1/4-28UNF or M6 flangeless nut
Compatible with flat bottom receiving port
Finger-tight convenience, no wrenches require
User for standard rigid tubing OD2.5mm, 3.0mm, 1/18"(3.175mm), 3.2mm, 4.0mm
Specification
| Model No. | Material | Color | Thread | Pressure Rating (psi/Mpa) | Tubing OD | Qty. |
| Z-710-1/4-28P | PP | Blue | 1/4-28UNF | ≥ 217.5/1.5 | 3.2/3.175/ 3.0/2.5mm | 10-pk |
| Z-710-1/4-28E | PTFE | |||||
| WD020A-1/4-28P | PP |
4.0mm |
||||
| WD020A-1/4-28E | PTFE | |||||
| Z-710-M6P | PP | M6 | 3.2/3.175/ 3.0/2.5mm | |||
| Z-710-M6E | PTFE | |||||
| WD020A-M6P | PP |
4.0mm |
||||
| WD020A-M6E |
PTFE
|
Application Note
1. Choose 1/4-28 nut when receiving port is 1/4-28; Choose M6 nut when receiving port is M6.
2. Before flange the tubing, ensure the end of the tubing has a clean, square, burr-free cut. This is very important, as the square cut helps the tubing make full contact with the bottom of the mating port. Neglecting to properly cut the tubing could lead to dead volume, resulting in peak distortion such as fronting, tailing or broadening.
3. Two-Piece Fittings Installation Steps:
a. Flange the tubing end with exclusive flange tool
b. Silide the nut, insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out.
c. Finger tighten the nut into the port until snug.
4. PP material is for non-corrosive or weak corrosive liquid; PTFE is for strong corrosive liquid.
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
