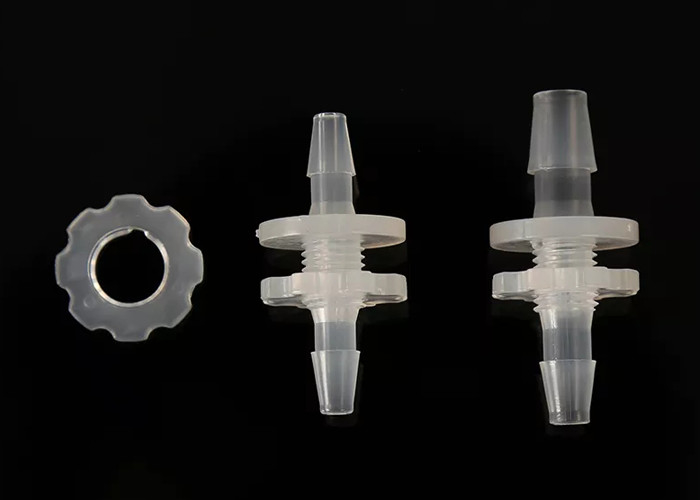

Equal barbed plastic hose bulkhead connector liquid good quality
Fittings are a crucial component in setting up your fluid handling system with no leaks, flow restrictions or costly downtime. Our extensive selection includes barbed fittings for flexible tubing, threaded fittings for rigid tubing, quick-connect couplings, luer adapters and many other fittings. Fittings and adapters are available in sizing to connect anything from microbore tubing up to large pipes and in a variety of materials such as low-cost polypropylene (PP) for general applications to PTFE and PFA for corrosive media.
Specification
| Model No. | Material | Color | Male Thread | Nut | Tubing ID(mm) | Qty. |
| DC-016-1/4-28-016P | PP (Medical Grade) | Natural PP | 1/4-28UNF | 1/4-28UNF | 1.0-1.6 | 100-pk |
| DC-024-1/4-28-024P | 1.6-2.4 | |||||
| DC-032-1/4-28-032P | 2.4-3.2 | |||||
| DC-040-M8-040P | M8 | M8 | 3.2-4.0 | |||
| DC-048-M8-048P | M8 | M8 | 4.0-4.8 | |||
| DC-064-M10-064P | M10 | M10 | 4.8-6.4 | |||
| DC-087-M12-087P | M12 | M12 | 6.4-8.7 | |||
| DC-016-1/4-28-016E | PTFE (Medical Grade) | Natural PTFE | 1/4-28UNF | 1/4-28UNF | 1.0-1.6 |
Customized accepted, MOQ: 2000pcs |
| DC-024-1/4-28-024E | 1.6-2.4 | |||||
| DC-032-1/4-28-032E | 2.4-3.2 | |||||
| DC-040-M8-040E | M8 | M8 | 3.2-4.0 | |||
| DC-048-M8-048E | M8 | M8 | 4.0-4.8 | |||
| DC-064-M10-064E | M10 | M10 | 4.8-6.4 | |||
| DC-087-M12-087E | M12 | M12 | 6.4-8.7 |
Application Note
1. Bulkhead Union is used for fixing fluidic tubing through metal or wooden board to keep them an unobstructed flowing way on your device or production line.
2. Soft Tube Equal Bulkhead Union is suitable for flexible tubing such as silicon, rubber, viton tube etc.
3. Two-Piece Fittings Installation Steps:
a. Drill a hole (diameter same as outer diameter of 1/4-28UNF, M8, M10 or M12 male thread) on necessary specific place of your board
b. Insert the thread part of bulkhead union into the board hole, then tighten the 1/4-28UNF, M8, M10, M12 nut forward until reaching the board.
c. Female thread of nut should be same as male thread of the main connector body.
d. Connecting soft tube at barbed end of soft tube bulkhead union.
4. soft tube equal bulkhead union = 1/4-28UNF, M8, M10, M12 male bulkhead union + 1/4-28UNF, M8, M10, M12 female nut
5. PP material is for non-corrosive and weak corrosive liquid; customized PTFE is for strong corrosive liquid.
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
