Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel,316L | Product Name: | Stainless Steel Quick Coupling |
|---|---|---|---|
| Thread: | BSPP | Size: | 1/8" To 1" |
| Application: | Maximum Flow Capacity | Pressure: | 40-300bar |
| Packing: | Carton | Connection: | Female |
| Highlight: | 1in Stainless Steel Quick Coupling,BSPP Stainless Steel Quick Coupling,IATF 16949 ss quick release coupling |
||

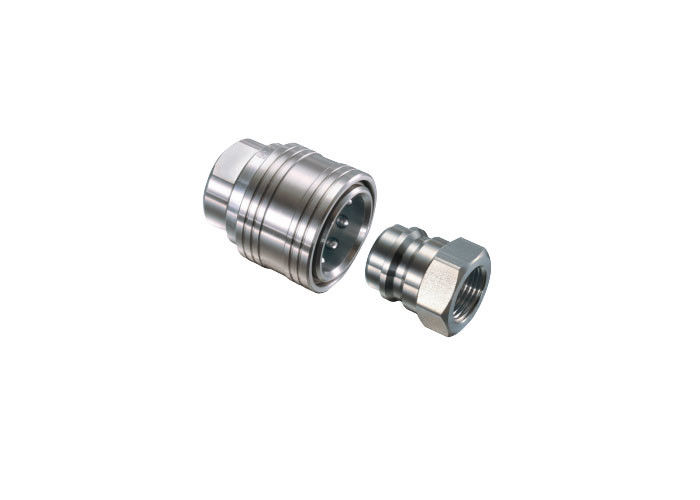

Applications where maximum flow capacity is required Stainless Steel Quick Coupling
CB-9 Series Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module D1 of the European Pressure Equipment Directive 97/23 EC. They should not be used to convey volatile gases.
Applications
Applications where maximum flow capacity is required Pressure washing Some steam-cleaning equipment Fluid transfer lines Refrigerant circuits Hydraulic fluids (water, steam, oil, …)
Standard Materials
Features
| Body Size |
PARTNO. Steel |
PARTNO. Brass |
PARTNO. Stainless |
Thread | A | B | HEX |
| 1/8" | CB-S1S-9FG | CB-S1B-9FG | CB-S1M-9FG | 1/8-28 | 41.5 | 24 | 16 |
| 1/4" | CB-S2S-9FG | CB-S2B-9FG | CB-S2M-9FG | 1/4-19 | 36 | 28 | 19 |
| 3/8" | CB-S3S-9FG | CB-S3B-9FG | CB-S3M-9FG | 3/8-19 | 38 | 34 | 23 |
| 1/2" | CB-S4S-9FG | CB-S4B-9FG | CB-S4M-9FG | 1/2-14 | 45 | 38 | 27 |
| 3/4" | CB-S6S-9FG | CB-S6B-9FG | CB-S6M-9FG | 3/4-14 | 56 | 48 | 35 |
| 1" | CB-S8S-9FG | CB-S8B-9FG | CB-S8M-9FG | 1-11 | 61 | 52 | 41 |
| Body Size |
PARTNO. Steel |
PARTNO. Brass |
PARTNO. Stainless |
Thread | C | D | HEX |
| 1/8" | CB-P1S-9FG | CB-P1B-9FG | CB-P1M-9FG | 1/8-28 | 26 | 11 | 16 |
| 1/4" | CB-P2S-9FG | CB-P2B-9FG | CB-P2M-9FG | 1/4-19 | 25.5 | 14.2 | 19 |
| 3/8" | CB-P3S-9FG | CB-P3B-9FG | CB-P3M-9FG | 3/8-19 | 28 | 19 | 23 |
| 1/2" | CB-P4S-9FG | CB-P4B-9FG | CB-P4M-9FG | 1/2-14 | 33 | 20.6 | 27 |
| 3/4" | CB-P6S-9FG | CB-P6B-9FG | CB-P6M-9FG | 3/4-14 | 40 | 27.9 | 35 |
| 1" | CB-P8S-9FG | CB-P8B-9FG | CB-P8M-9FG | 1-11 | 44 | 32.4 | 41 |
