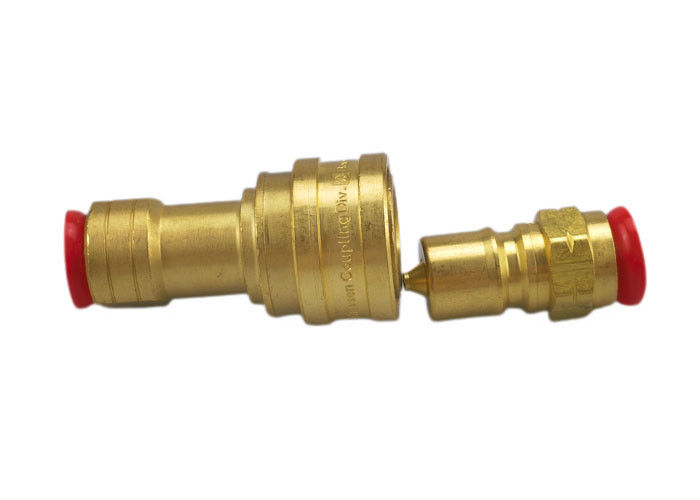

CNC Machining 3/8 Inch Brass Male Quick Connector

Medium-pressure High Performance Pneumatic And Hydraulic Brass Quick Coupling

Carterberg, one of the independent brands of PMC, represents diversified fluid connector series products, covering hydraulic quick couplings, pneumatic quick couplings and pneumatic couplings. Provide customers with high quality products, and OEM for international first-class brands.


CB-3 Series Quick Couplings are used across the spectrum of hydraulic applications. Primarily used with hydraulic fluid. CB-3 couplings are also used with chemicals, water, steam, and some gases.

Standard Materials

• Brass, zinc-plated steel, stainless steel
• Seals: NBR, Viton, EPDM

Features

1. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
2. Critical parts are hardened for durability.
3. Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.

Body Size	PARTNO.	Thread	A	B	Across Flats
1/8"	CB-S1B-1FG	1/8-27	1.91	0.98	0.56
1/8"	CB-S1B-1FN	1/8-27	1.91	0.98	0.56
1/4"	CB-S2B-1FG	1/4-19	2.26	1.17	0.75
1/4"	CB-S2B-1FN	1/4-18	2.26	1.17	0.75
3/8"	CB-S3B-1FG	3/8-19	2.56	1.42	0.88
3/8"	CB-S3B-1FN	3/8-18	2.56	1.42	0.88
1/2"	CB-S4B-1FG	1/2-14	2.96	1.86	1.13
1/2"	CB-S4B-1FN	1/2-14	2.96	1.86	1.13
3/4"	CB-S6B-1FG	3/4-14	3.48	2.22	1.31
3/4"	CB-S6B-1FN	3/4-14	3.48	2.22	1.31
1"	CB-S8B-1FG	1-11	4.13	2.61	1.75
1"	CB-S8B-1FN	1-11	4.13	2.61	1.75

Body Size	PARTNO.	Thread	C	D	E	HEX
1/8"	CB-P1B-1FG	1/8-27	1.26	0.65	0.44	0.56
1/8"	CB-P1B-1FG	1/8-27	1.26	0.65	0.44	0.56
1/4"	CB-P2B-1FG	1/4-19	1.52	0.87	0.56	0.75
1/4"	CB-P2B-1FN	1/4-18	1.52	0.87	0.56	0.75
3/8"	CB-P3B-1FG	3/8-19	1.76	1.01	0.61	0.88
3/8"	CB-P3B-1FN	3/8-18	1.76	1.01	0.61	0.88
1/2"	CB-P4B-1FG	1/2-14	2.03	1.30	0.76	1.13
1/2"	CB-P4B-1FN	1/2-14	2.03	1.30	0.76	1.13
3/4"	CB-P6B-1FG	3/4-14	2.36	1.52	0.71	1.31
3/4"	CB-P6B-1FN	3/4-14	2.36	1.52	0.71	1.31
1"	CB-P8B-1FG	1-11	2.85	1.88	0.97	1.63
1"	CB-P8B-1FN	1-11	2.85	1.88	0.97	1.63
