Product Details:
Payment & Shipping Terms:
|
| Material: | Brass,stainless Steel | Color: | Yellow |
|---|---|---|---|
| Connection: | Female | Name: | Quick Connector |
| Application: | Water Pipe System | Size: | Customized Size |
| Rated Flow: | 3 To 100 | Compatible With: | PARKER ST Series, HANSEN ST Series, FOSTER FST Series |
| Highlight: | NBR Brass Quick Connect Fittings,2800psi Brass Quick Connect Fittings,IATF 16949 brass coupling |
||

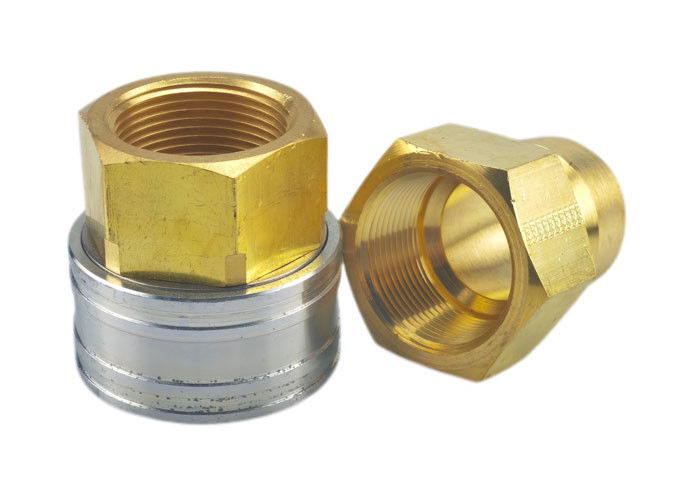

Non-Valved Series maximum flow straight-through couplings
CB-11 Series straight-through couplings are designed for use where minimum pressure drop is required and valving is not needed. They are well suited for use on pressure wash, steam cleaning and carpet cleaning equipment, and many fluid transfer systems. Body sizes range from 1/8" to 1".
Standard Materials
Features
| BODY SIZE | Rated Pressure (PSI) | Rated Pressure (BAR) | Standard seal material |
| 1/8" | 2800 | 193 | NBR |
| 1/4" | 5200 | 359 | |
| 3/8" | 2800 | 193 | |
| 1/2" | 2200 | 152 | |
| 3/4" | 1700 | 117 | |
| 1" | 1300 | 90 |
| Body Size | PARTNO. Brass | PARTNO. Stainless | Thread | A | B | HEX |
| 1/8" | CB-S1B-11FN | CB-S1L-11FN | 1/8-27 | 1.06 | 0.69 | 0.50 |
| 1/8" | CB-S1B-11FG | CB-S1L-11FG | 1/8-28 | 1.03 | 0.69 | 0.56 |
| 1/4" | CB-S2B-11FN | CB-S2L-11FN | 1/4-18 | 1.50 | 0.94 | 0.81 |
| 1/4" | CB-S2B-11FG | CB-S2L-11FG | 1/4-19 | 1.50 | 0.94 | 0.81 |
| 3/8" | CB-S3B-11FN | CB-S3L-11FN | 3/8-18 | 1.59 | 1.13 | 1.00 |
| 3/8" | CB-S3B-11FG | CB-S3L-11FG | 3/8-19 | 1.59 | 1.13 | 1.00 |
| 1/2" | CB-S4B-11FN | CB-S4L-11FN | 1/2-14 | 1.91 | 1.31 | 1.13 |
| 1/2" | CB-S4B-11FG | CB-S4L-11FG | 1/2-14 | 1.91 | 1.31 | 1.13 |
| 3/4" | CB-S6B-11FN | CB-S6L-11FN | 3/4-14 | 2.06 | 1.69 | 1.44 |
| 3/4" | CB-S6B-11FG | CB-S6L-11FG | 3/4-14 | 2.06 | 1.69 | 1.44 |
| 1" | CB-S8B-11FN | CB-S8L-11FN | 1-11 | 2.31 | 2.00 | 1.75 |
| 1" | CB-S8B-11FG | CB-S8L-11FG | 1-11 | 2.33 | 2.00 | 1.75 |

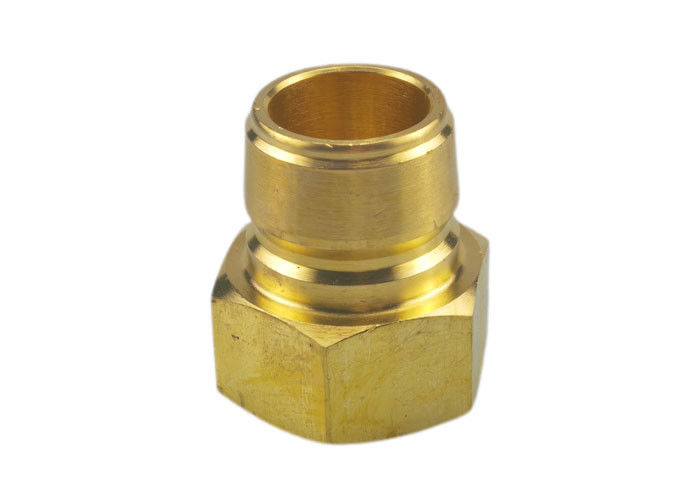

| Body Size | PARTNO. Brass | PARTNO. Steel | PARTNO. Stainless | Thread | C | D | HEX |
| 1/8" | CB-P1B-11FN | CB-P1S-11FN | CB-P1L-11FN | 1/8-27 | 1.00 | 0.58 | 0.50 |
| 1/8" | CB-P1B-11FG | CB-P1S-11FG | CB-P1L-11FG | 1/8-28 | 0.97 | 0.65 | 0.56 |
| 1/4" | CB-P2B-11FN | CB-P2S-11FN | CB-P2L-11FN | 1/4-18 | 1.50 | 0.79 | 0.69 |
| 1/4" | CB-P2B-11FG | CB-P2S-11FG | CB-P2L-11FG | 1/4-19 | 1.45 | 0.87 | 0.75 |
| 3/8" | CB-P3B-11FN | CB-P3S-11FN | CB-P3L-11FN | 3/8-18 | 1.63 | 0.94 | 0.81 |
| 3/8" | CB-P3B-11FG | CB-P3S-11FG | CB-P3L-11FG | 3/8-19 | 1.63 | 1.01 | 0.88 |
| 1/2" | CB-P4B-11FN | CB-P4S-11FN | CB-P4L-11FN | 1/2-14 | 1.94 | 1.15 | 1.00 |
| 1/2" | CB-P4B-11FG | CB-P4S-11FG | CB-P4L-11FG | 1/2-14 | 1.92 | 1.23 | 1.06 |
| 3/4" | CB-P6B-11FN | CB-P6S-11FN | CB-P6L-11FN | 3/4-14 | 2.06 | 1.37 | 1.19 |
| 3/4" | CB-P6B-11FG | CB-P6S-11FG | CB-P6L-11FG | 3/4-14 | 2.01 | 1.52 | 1.31 |
| 1" | CB-P8B-11FN | CB-P8S-11FN | CB-P8L-11FN | 1-11 | 2.21 | 1.80 | 1.56 |
| 1" | CB-P8B-11FG | CB-P8S-11FG | CB-P8L-11FG | 1-11 | 2.23 | 1.80 | 1.56 |
