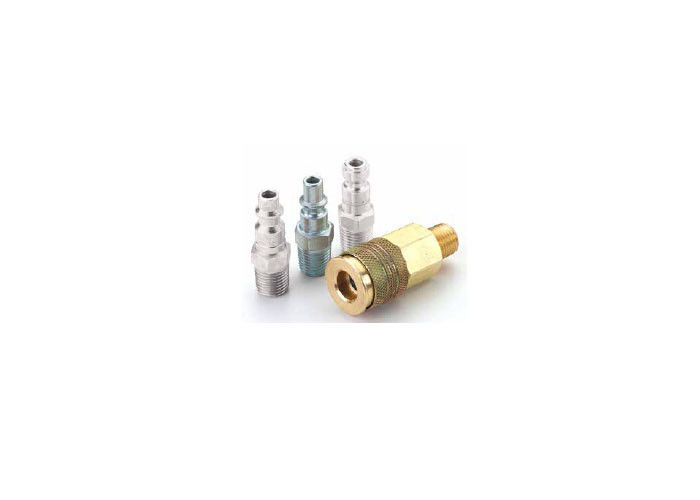

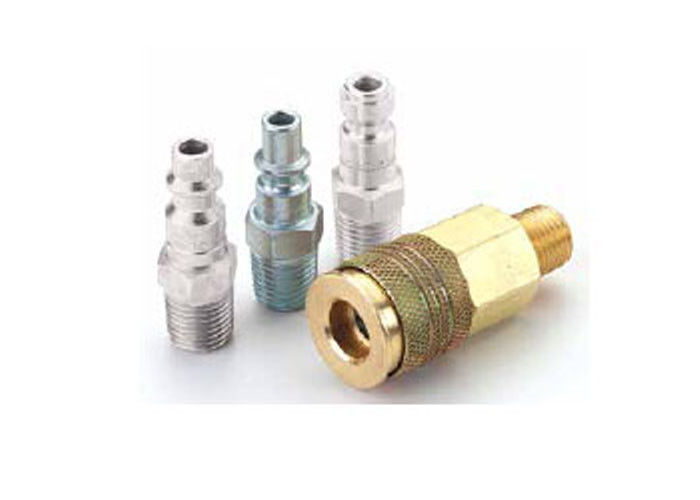

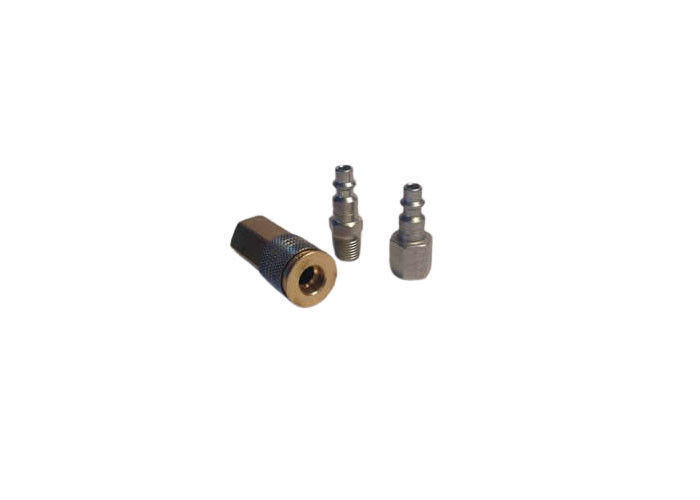

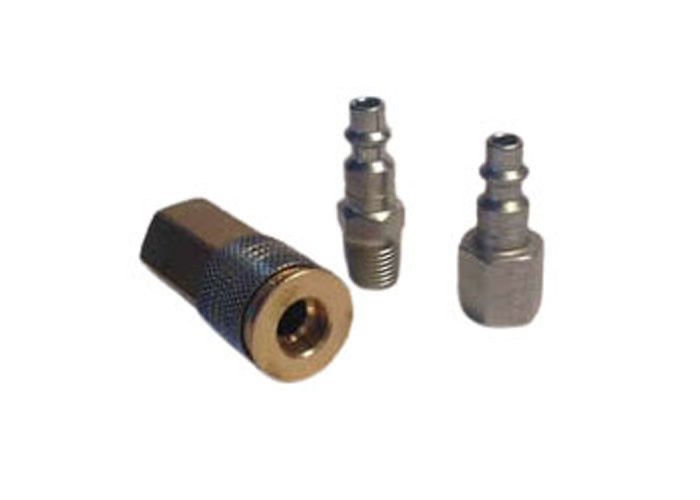

High Flow NPT 0.25 Inch Pneumatic Quick Coupling

High Flow NPT 0.25 Inch Pneumatic Quick Coupling
High Flow NPT 0.25 Inch Pneumatic Quick Coupling High Flow NPT 0.25 Inch Pneumatic Quick Coupling High Flow NPT 0.25 Inch Pneumatic Quick Coupling High Flow NPT 0.25 Inch Pneumatic Quick Coupling

Large Image :  High Flow NPT 0.25 Inch Pneumatic Quick Coupling

Product Details:
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-12
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Contact Now
Detailed Product Description
Product Name: Quick-Connect Coupling Application: General Pneumatics
Standard: NPT Nominal: 1/4
Type: Coupling Flow: 32scfm
Material: Brass Technics: Forged,Casting,Machining Air Hose Quick Coupling,Plastic Injection,Machining
Highlight:

0.25'' Pneumatic Quick Coupling

,

NPT Pneumatic Quick Coupling

,

IATF 16949 air hose quick coupler

High flow, automatic Quick-Connect Couplings designed for use with compressed air Pneumatic Quick Coupling



CB-12 Series High flow, automatic Quick-Connect Couplings designed for use with compressed air.



Applications & Markets

• General Pneumatics

• Air Tools

• Construction

Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket end of line
  2. Sleeve guard protects against accidental disconnection
  3. Compatible with Hansen AUTO-FLO23&24 Series



High Flow NPT 0.25 Inch Pneumatic Quick Coupling 0

Body Size PARTNO. Thread A B HEX
1/4" CB-S2B-12MN-G 1/4-18 2.23 0.94 0.81
1/4" CB-S2B-12MG-G 1/4-19 2.23 0.94 0.81
1/4" CB-S3B-12MN-G 3/8-18 2.23 0.94 0.81
1/4" CB-S3B-12MG-G 3/8-19 2.23 0.94 0.81
1/4" CB-S4B-12MG-G 1/2-14 2.23 0.94 0.88

High Flow NPT 0.25 Inch Pneumatic Quick Coupling 1High Flow NPT 0.25 Inch Pneumatic Quick Coupling 2



Body Size PARTNO. Thread C D HEX
1/4" CB-P1S-12MN 1/8-27 1.59 0.58 0.50
1/4" CB-P2S-12MN 1/4-18 1.75 0.65 0.56
1/4" CB-P3S-12MN 3/8-18 1.75 0.79 0.69
1/4" CB-P2B-12MN 1/4-18 1.75 0.64 0.56
1/4" CB-P2L-12MN 1/4-18 1.75 0.65 0.56



Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.



Tag:

0.25in Pneumatic Quick Coupling,

CB-12 Pneumatic Quick Coupling,

EPDM Pneumatic Quick Coupling
