Product Details:
Payment & Shipping Terms:
|
| Type: | Coupling | Material: | Carbon Steel |
|---|---|---|---|
| Connection: | Female,Male | Technics: | Machining |
| Size: | 3/8, 1/2 | Thread: | BSP |
| Product Name: | Quick Coupling | Standard: | OEM |
| Highlight: | OEM Agricultural Quick Couplings,Carbon Steel Agricultural Quick Couplings,BSP hydraulic quick connect |
||

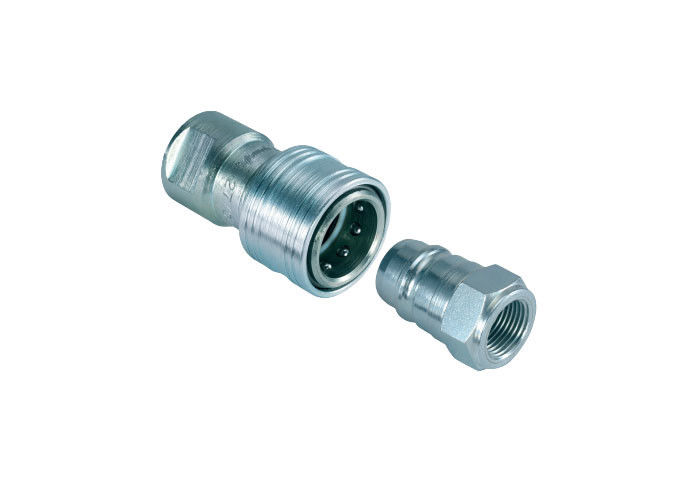

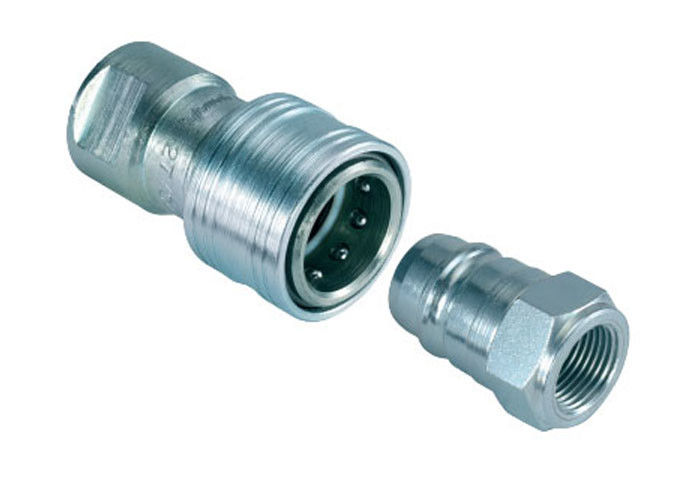

Applications in agricultural machinery Iron and steel industry Agricultural Quick couplings
Features
CB-8 Series couplings have nominal diameters no greater than 25 mm. they are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.
Applications
Hydraulic circuits and equipment Forestry and agricultural machinery Iron and steel industry
Standard Materials

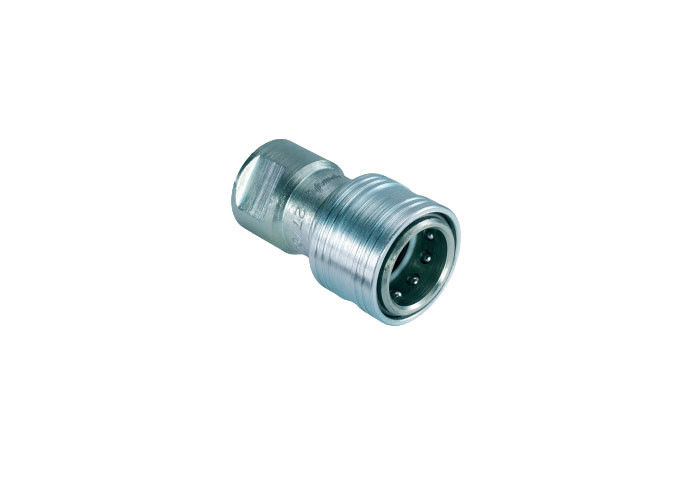

| Body Size | PARTNO. | Thread | A | B | HEX |
| 3/8" | CB-S3S-8FN-A | G3/8 | 59 | 34 | 23 |
| 1/2" | CB-S4S-8FG-A | G1/2 | 69 | 38 | 27 |

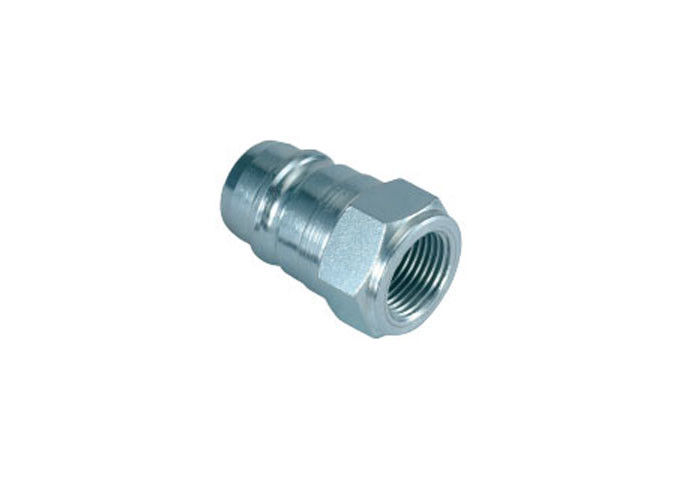

| Body Size | PARTNO. | Thread | C | D | HEX |
| 3/8" | CB-P3S-8FN-A | G3/8 | 42 | 19 | 23 |
| 1/2" | CB-P4S-8FG-A | G1/2 | 50 | 20.6 | 27 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
