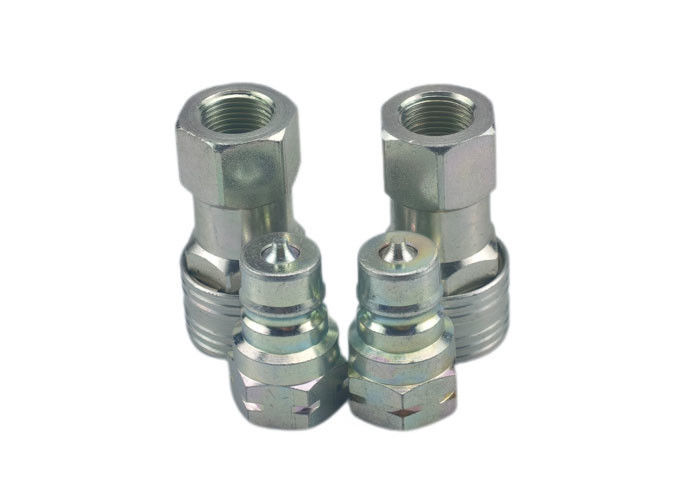

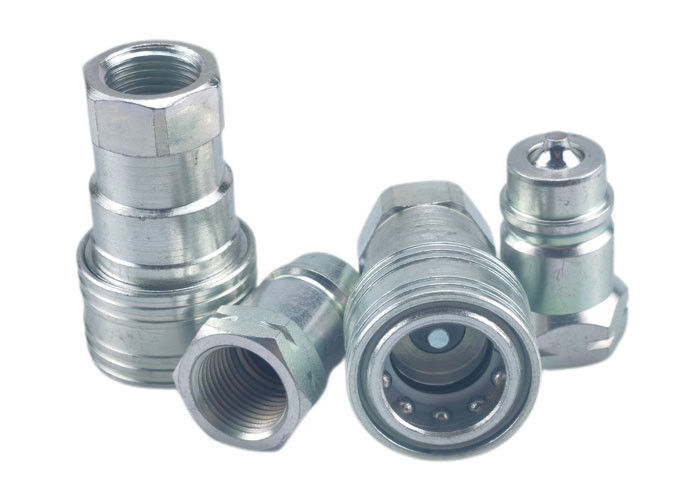

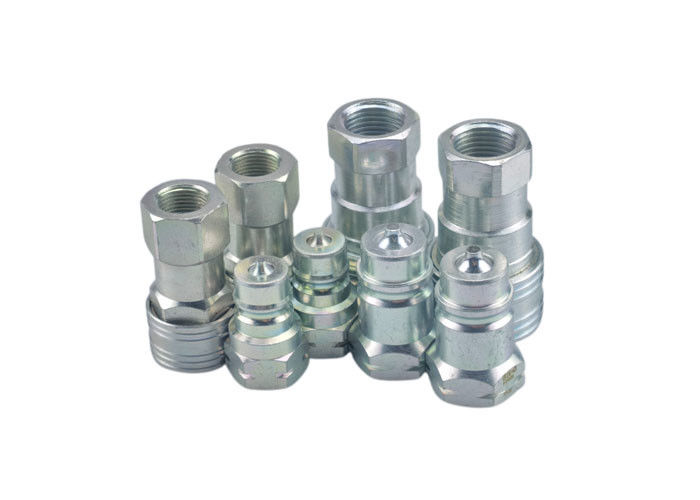

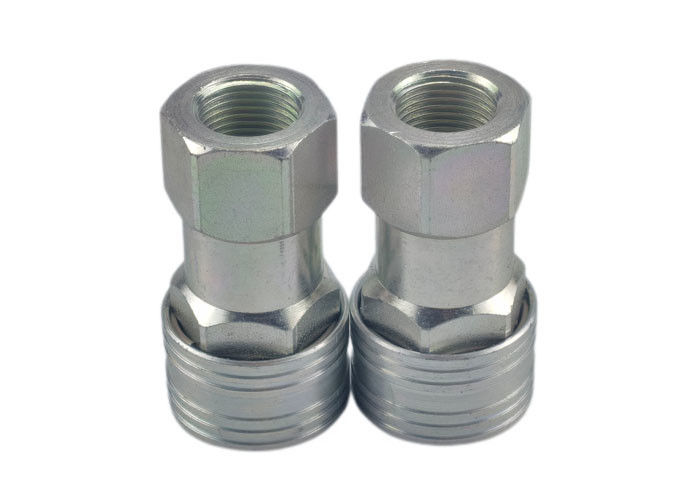

Gromelle H15000 series self-sealing quick Couplings
The Gromelle H15000 Series is a general purpose industrial interchange coupling that meets the ISO 7241-1 Series A standard. The H15000 Series features a rugged ball latch mechanism with self-sealing poppet valves.
Product Features
• Meets the requirements of ISO 7241-1 Series A
• Designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC
• ½" size available in push-pull version( double acting sleeve,bulkhead-mounted)
• Double shut off valves with ball locking
• Standard body material: Zinc trivalent plated steel
• Standard seal material: NBR
|
Body Size |
Part Number |
Material |
NPT Female thread |
BSPP Female thread |
Coupling Type |
|
1/4 |
HA1501100 |
Steel |
- |
1/4 |
Socket |
|
1/4 |
HA1521100 |
Steel |
1/4 |
- |
Socket |
|
3/8 |
HA1502100 |
Steel |
- |
3/8 |
Socket |
|
3/8 |
HA1522100 |
Steel |
3/8 |
- |
Socket |
|
1/2 |
HA1503100 |
Steel |
- |
1/2 |
Socket |
|
1/2 |
HA1503600 |
Steel |
- |
1/2 (Push-to Connect) |
Socket |
|
1/2 |
HA1523100 |
Steel |
1/2 |
- |
Socket |
|
3/4 |
HA1504100 |
Steel |
- |
3/4 |
Socket |
|
3/4 |
HA1524100 |
Steel |
3/4 |
- |
Socket |
|
1 |
HA1505100 |
Steel |
- |
1 |
Socket |
|
1 |
HA1525100 |
Steel |
1 |
- |
Socket |
|
1/4 |
HA1501200 |
Steel |
- |
1/4 |
Plug |
|
1/4 |
HA1521200 |
Steel |
1/4 |
- |
Plug |
|
3/8 |
HA1502200 |
Steel |
- |
3/8 |
Plug |
|
3/8 |
HA1522200 |
Steel |
3/8 |
- |
Plug |
|
1/2 |
HA1503200 |
Steel |
- |
1/2 |
Plug |
|
1/2 |
HA1523200 |
Steel |
1/2 |
- |
Plug |
|
3/4 |
HA1504200 |
Steel |
- |
3/4 |
Plug |
|
3/4 |
HA1524200 |
Steel |
3/4 |
- |
Plug |
|
1 |
HA1505200 |
Steel |
- |
1 |
Plug |
|
1 |
HA1525200 |
Steel |
1 |
- |
Plug |
